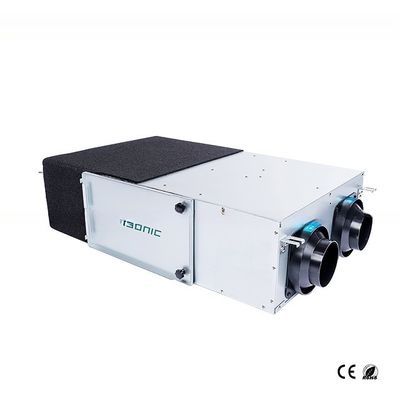

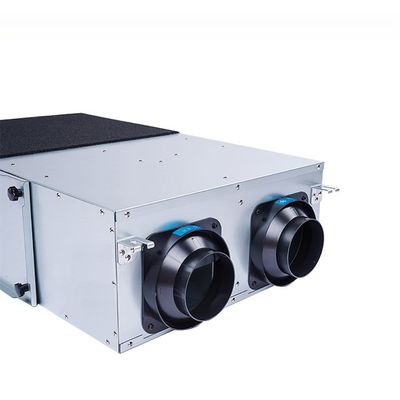

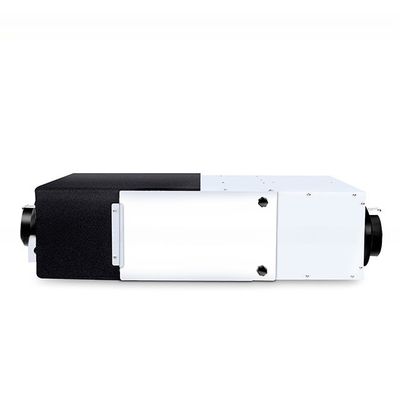

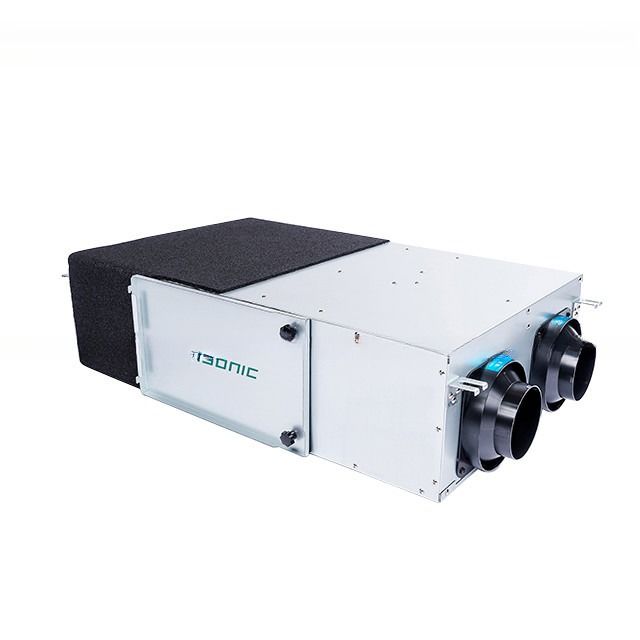

HVAC Indoor Climate Control Return Air Ventilation System with HRV/ERV Air Conditioner
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Elsonic |
| Model Number: | EL-HR15AM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $350.00/sets 10-49 sets |
| Packaging Details: | Carton package with wooden box for safe export |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Size: | 750*570*217mm |
| Function: | Return Air Ventilation | Max Air Flow: | 150M3/H |
| Static Pressure: | 80Pa | Material:: | Stainless Steel |
| Application:: | Ventilation, Air Conditioning, Heating, Cooling, HVAC | Motor:: | Panasonic AC Motor |
| Tuyere Size:: | DIa110mm | Noise:: | 28DB(A) |
| Certificate:: | ISO,CE,CQC,ROHS,CCC | Port: | Xiamen |
Product Description
HVAC HRV residential heat recovery ventilator indoor climate controller room for heat recovery ventilation system, air conditioner
Specifications
| Model | EL-HR15AM | EL-HR25AM | EL-HR35AM | EL-HR50AM | EL-HR80AM | EL-HR100AM | EL-HR120AM |
| Power supply(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Max.Power(W) | 69 | 96 | 165 | 205 | 350 | 380 | 400 |
| Air Flow(m³/h) | 150 | 250 | 350 | 500 | 800 | 1000 | 1200 |
| Static pressure(Pa) | 80 | 120 | 240 | 280 | 300 | 320 | 360 |
| Noise DB(A) | 28 | 31 | 36 | 39 | 41 | 45 | 48 |
| Weight(KG) | 19 | 23 | 23 | 35 | 48 | 65 | 79 |
| Dimension(mm) | 750*570*217 | 750*570*217 | 925*670*256 | 1000*690*260 | 1200*920*324 | 1250*880*332 | 1250*1100*322 |
| Tuyere size(mm) | φ110 | φ150 | φ150 | φ150 | φ200 | φ250 | φ250 |
| Primary Filter | √ | √ | √ | √ | √ | √ | √ |
Features
1. Pre-filter
2.Carbon filter(Option)
3.IFD electrostatic module(Option)
4.Hepa filter(H13)(Option)

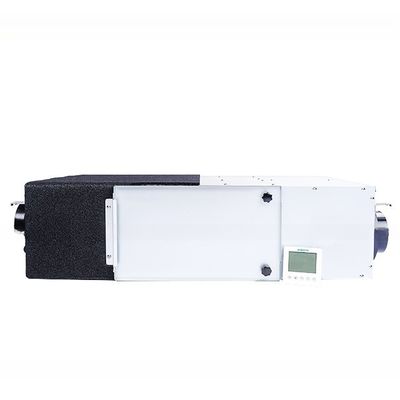

Intelligent Controller

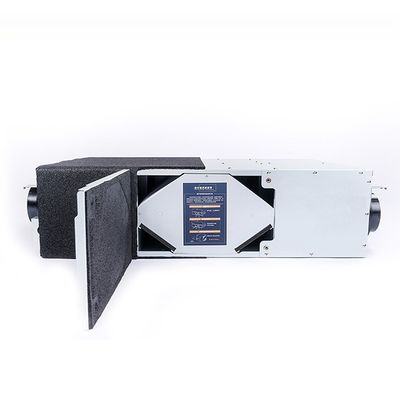

The working of heat recovery ventilator
