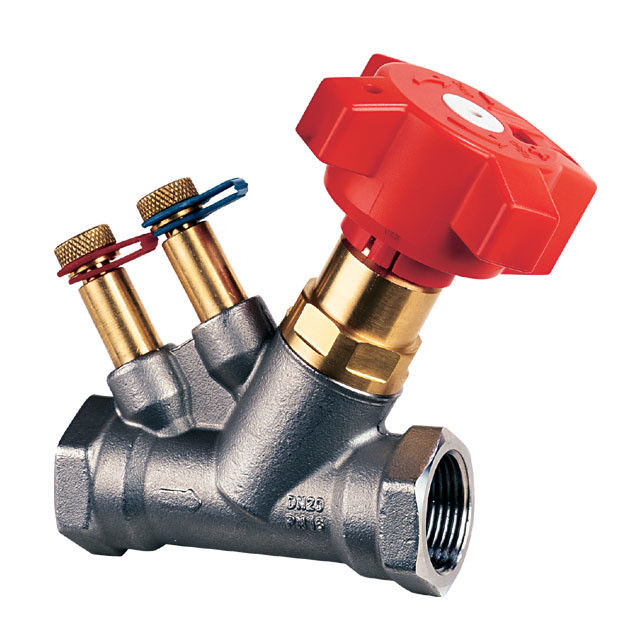

Manual ELVA Static Balancing Valve 25-50 mm Port Size Durable Construction
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | ELVA |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pieces |
|---|---|
| Price: | $14.00 - $18.00/pieces |
| Packaging Details: | IN CASE |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Application: | General | Port Size: | 25-50 Mm |
|---|---|---|---|
| Power: | Manual | Temperature Of Media: | Normal Temperature |
| Structure: | BALL | Media: | Water |
| Standard Or Nonstandard: | Standard | CE, RoHS, ISO9001: | Certification |
| Size: | DN25-DN50 | Port: | Xiamen |
Product Description
General
ELVA Series Water Power Static Balancing Valve is used to balance water power in a system. It specially used to measuring the change of flux of the channels. Refined Copper Valve and Soft Seal promise the long life.
Size: DN25-DN50
Technical Data
Applicalbe in Heating and Cooling system (glycol or brine water), Drink Water system(Hot Water / Cold Water), Sea Water (Clod Water)
Function: Balancing, Set-advanced, Measure, Shut-off. Leakage(Optional)
Material
Valve Body.Valve Cove | Brass |
Connection | Screwed DIN2999 BS21 |
Connector Link | PP |
Valve Cone | Copper Alloy |
Valve Shaft | Copper Alloy |
Max. Work Pressure: | PN16 |
Fluid Error | ±5%(50%-100% opening) |
Work Temperature | -20 - 120 degree. Higher temperature |
setting could be ordered | When it is more than 120 degree, please detach the manual wheel. |
Seal | PTFE / Double-sided O-ring. |
