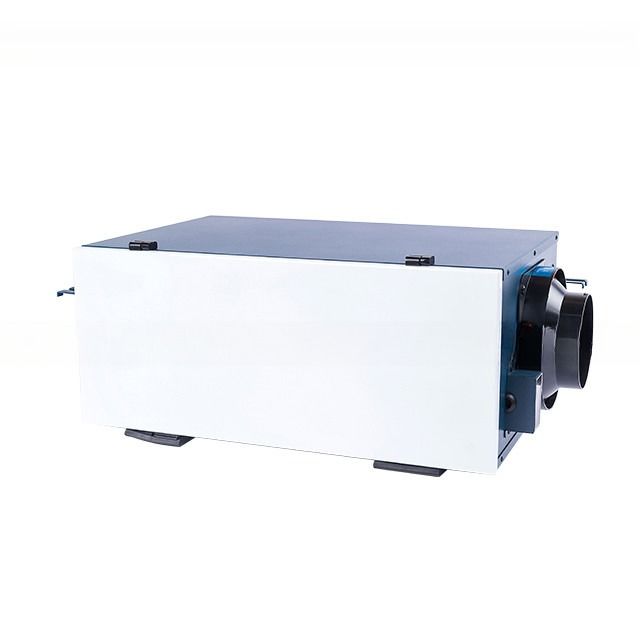

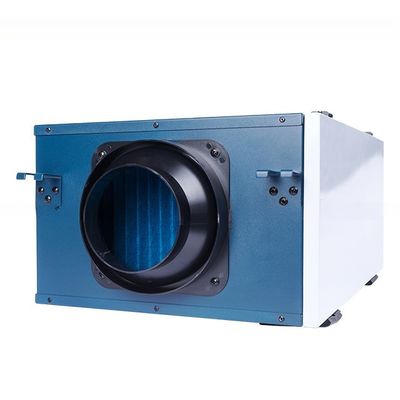

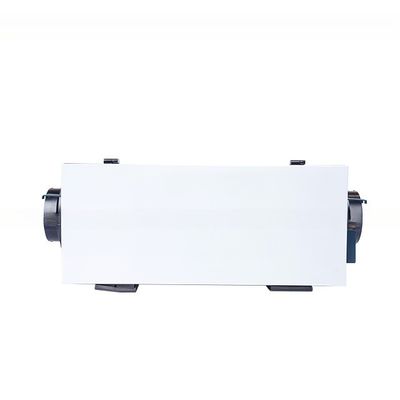

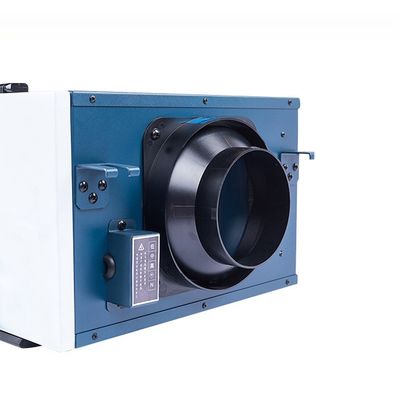

Portable Roof Air Ventilator for HVAC Ventilation System 500*320*195mm CCC Certified
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | EL-S20AM-P |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $100.00 - $500.00/sets |
| Packaging Details: | Carton package with wooden box for safe export |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Material: | Stainless Steel | Application: | School,bedroom,office |
|---|---|---|---|
| Function: | Return Air Ventilation | Size: | 500*320*195mm |
| Motor: | Brand AC Motor | Certificate: | ISO9001:2008,CE,CCC |
| Color: | Optional | Port: | Xiamen,China(Mainland) |
Product Description
HVAC ventilation system portable roof air ventilator air handling unit
Specifications
| Model | EL-S20AM-P | EL-S35AM-P | EL-S50AM-P | EL-S80AM-P |
| Power supply(V) | 220 | 220 | 220 | 220 |
| Max power(W) | 60 | 69.67 | 95 | 185 |
| Air flow(m³/h) | 200 | 350 | 600 | 800 |
| Static pressure(Pa) | 110 | 250 | 280 | 180 |
| Noise DB(A) | 28 | 37 | 39 | 42 |
| Weight(KG) | 9 | 10 | 13 | 16 |
| Size(mm) | 500*320*195 | 500*355*205 | 605*403*324 | 650*550*324 |
| Tuyere size | φ100 | φ150 | φ150 | φ200 |
| Primary filter | √ | √ | √ | √ |
| Avtice carbon filter | √ | √ | √ | √ |
| HEPA filter | √ | √ | √ | √ |
How to select the suitable products?
- We calculate the require airflow per hour according to the number of people, the size of the room and the amount of fresh air per hour and then select the suitable fresh air ventilator.
Fresh AirFlow Calculation Formula
- 1. Fresh Airflow Standard: 30m3/h/person(Different environment different standard)
=Number of people × 30m3/h
- 2.According to the size of room and fresh air change rate per hour
=Room size × Floor height × Fresh air change rate (times/m3/h)
Conditions of fresh air equipment location
- 1.Keep away from the rest area
- 2.Prevent exposure and rain
- 3.Duct layout is reasonable
Features
Pre-filter is a good method to filter large particles of dust and mosquitoes,which normally make the fresh air system works well,besides,carbon filter,IFD electrostatic module,HEPA filter can be the option.
Brand AC motor
- High quality motor with low noise: Use brand AC motor from well-known manufacturer, lower noise and smooth operation performance
- Motor warranty is 5 years, longer life time
- High efficiency, energy saving by 20-40%
- DC motor is optional
Advantage
- Bring outdoor fresh air to improve indoor air quality
- Flexbile installation
- Easy to clean, low maintenance cost.
