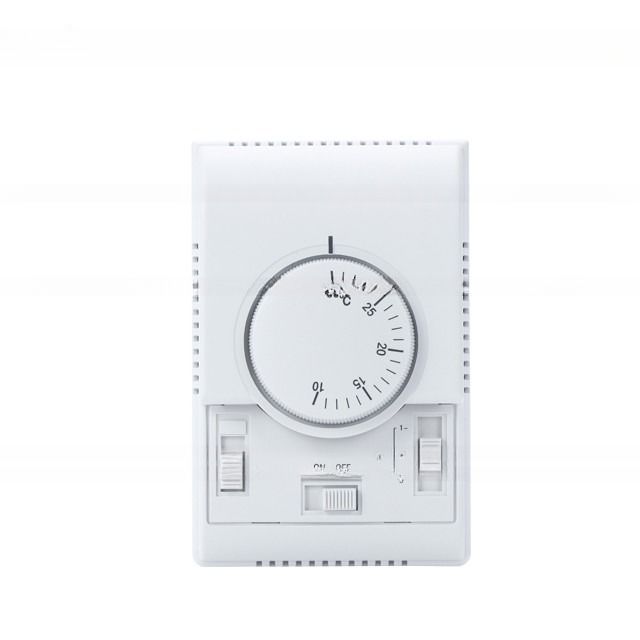

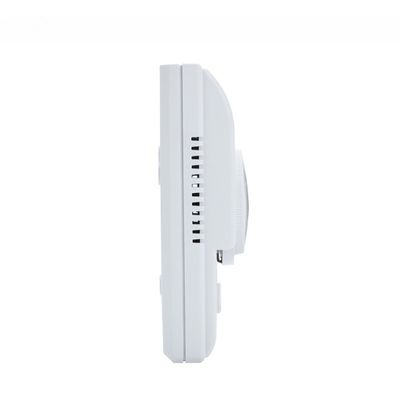

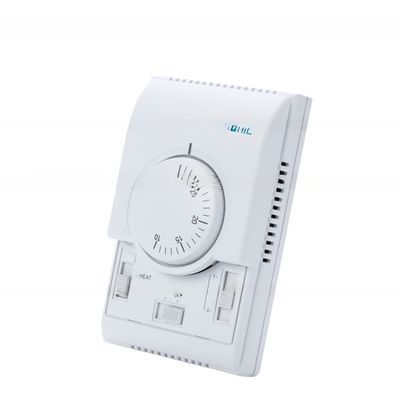

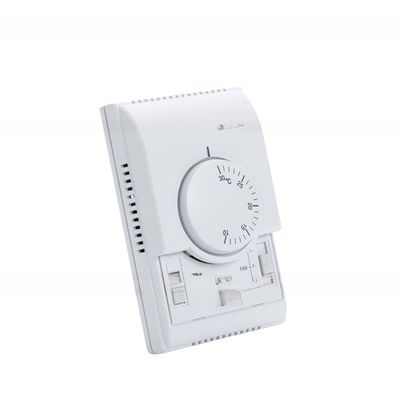

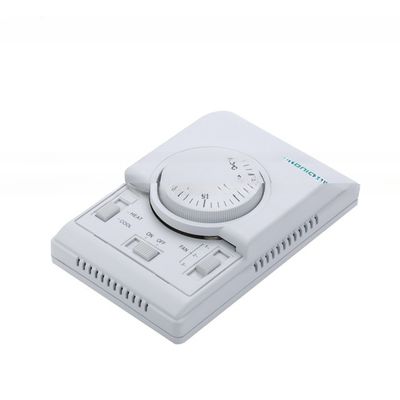

NTC Sensor AC801C Electronic Room Mechanical Thermostat Applications
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Certification: | ISO9001,CE, RoHS |
| Model Number: | AC801 C |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $10.00 - $14.00/pieces |
| Packaging Details: | 1PCS/ PAPER BOX |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 2000000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Sensor: | NTC | Port: | Xiamen |
|---|---|---|---|
Product Description
Thermostat Switch, Mechanical Thermostat
General
AC801C Series Mechanical Thermostatare used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and water valve of heating only,cooling only and heating/cooling central air-condition and system thereof,and then detect the room temperature amongst the set-point.The rate which is indicated by index(pin) is the temperature you want.
Specification
|
Sensor |
Inflated film |
|
Power supply |
220VAC 50/60HZ |
|
Rated Current |
5A |
|
Set-point Range |
10-30 |
|
Accuracy |
at 25≤1°C |
|
Shell |
Bottom, cover and index board are made of white ABS plastic, Gray switch |
|
Ambient Condition |
-20-55°C |
|
Relative Humidity |
<92%(no condensing) |
CHARACTERISTICS
|
- Inflate film sensor |
|
- Big dial plate + switch,easy control |
|
- Accurate integration,longevity working |
|
- 86 Standard Hidden box (60mm),easy installation |
|
- Fan coil unit controllable(optional) |
|
- Long life,operation times are more than 6,000 when the contact is at 220V(full load); - 100,000 times for manual operation |
