AC336 Digital FCU Thermostat WIFI/RS485/Modbus/Zigbee Max Load Resistive 4A 5A rating relay
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Elsonic |
| Model Number: | AC336 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 units |
|---|---|
| Price: | $10.00 - $30.00/units |
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Set/Sets per Month |
|
Detail Information |
|||
| Type: | HVAC Systems,Thermostat | Application: | FCU/Central Air Conditioning |
|---|---|---|---|
| Power Supply: | 24VAC/110VAC/220VAC | Max Load: | Inductive 2A, Resistive 4A(5A Rating Relay) |
| Display Accuracy: | 0.5℃ | Temperature Range: | 5~35℃ |
| Product Color: | White | Ambiente: | Storage:-20C~60C, Ambient Operating: 0°C To 50°C, Humidity:5~95% |
| Suitable System: | Two Pipe/Four Pipe | Communication: | WIFI / RS485 / Modbus / Zigbee |
| Port: | Xiamen,China | ||
Product Description

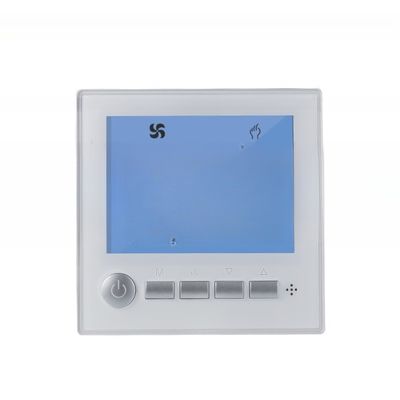

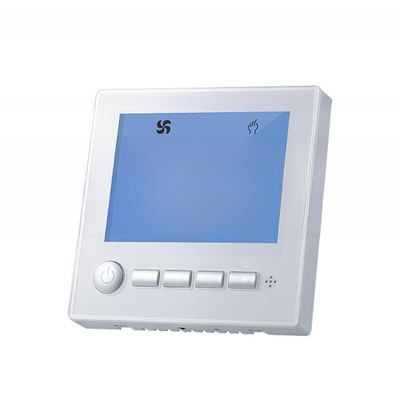

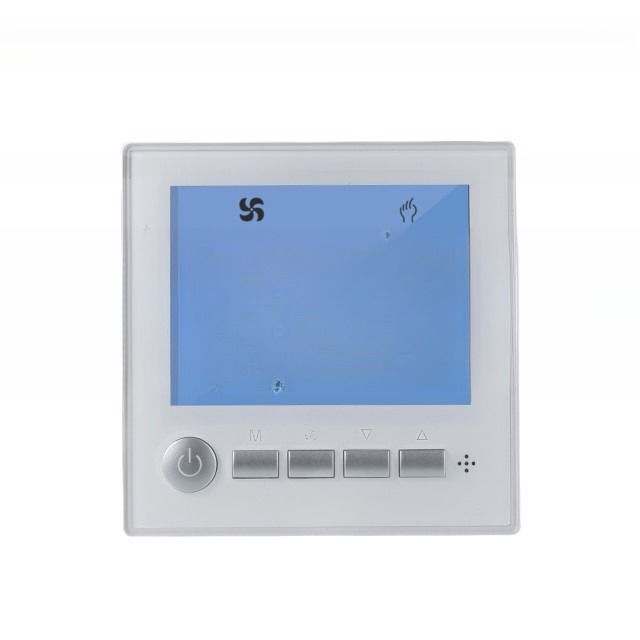

AC336 Digital FCU Thermostat
Large-screen LCD display, blue backlight
Multi-function and easy operation
Apply to 2/4 pipe FCU system
Acrylic frame, stylish, textured
High reliability MCU
Elegant texture
Stylish design
General AC336 Digital FCU Thermostats apply to temperature control for Fan Coil Units, Motorized Valves, Motorized Damper Valves, Dampers, or Heating Equipment. It is with Large-screen LCD Display measuring the ambient temperature by inbuilt NTC sensor and com- paring it with set-point. They automatically adjust the air inflow volume of cooling/heating, or switch on/off motorized valves to keep a constant ambient temperature. Recommended match with V2016, V4016, V6016, and V8016 Series motorized valves.
Technical Data
Characteristics
Part No.
|
