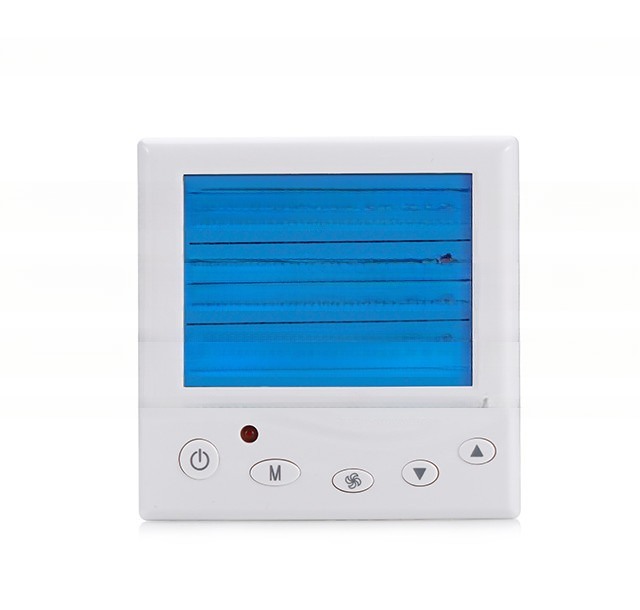

0-10V WIFI Air Conditioner Water Cooler Thermostat Timer Switch for Thermostat Control
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | TC8800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $20.00 - $30.00/pieces |
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Type: | HVAC Systems,Thermostat |
| Application: | FCU/Central Air Conditioning | Power Supply: | 24VAC/110VAC/220VAC |
| Max Load: | Inductive 2A, Resistive 4A(5A Rating Relay) | Display Accuracy: | 0.5℃ |
| Temperature Range: | 5~35℃ | Product Color: | White |
| Ambiente: | Storage:-20C~60C, Ambient Operating: 0°C To 50°C, Humidity:5~95% | Suitable System: | Two Pipe/Four Pipe |
| Communication: | WIFI / RS485 / Modbus / Zigbee | Port: | Xiamen |
Product Description
Digital Thermostat for Water Heating System
General
R310 Series Electrical Heating Thermostats adopt NTC sensor, Output relay controls the on/off of the motorized valve. When room temperature is 1°C lower than set-point, thermostat opens the valve; when they are equal, it closed the valve. The max. current load is 16A. With computerized controller technique, R310 Series Thermostats have Timing Open/Close and 7days 4 cycle programmable function. LED displays room temperature and set-point mode.
Technical Data
Consumption | <1.5W |
Timing Error | <1% |
Power Supply | 100VAC-240VAC 50/60HZ |
Load Current | GA:2A GB:16A |
Temperature Range | 5-35°C |
Accuracy | ±1ºC |
