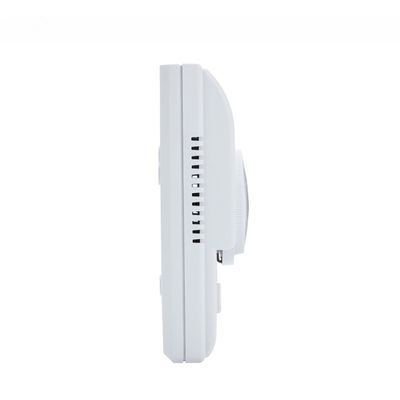

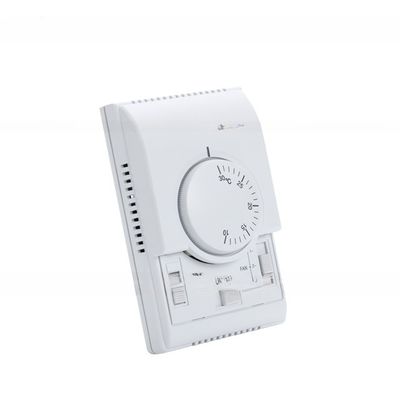

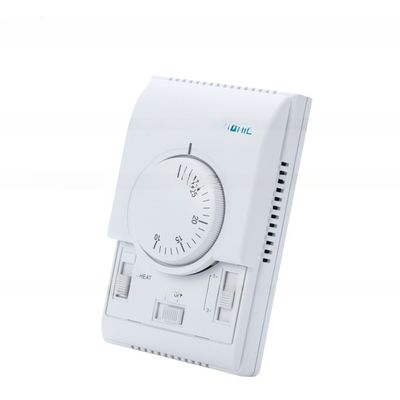

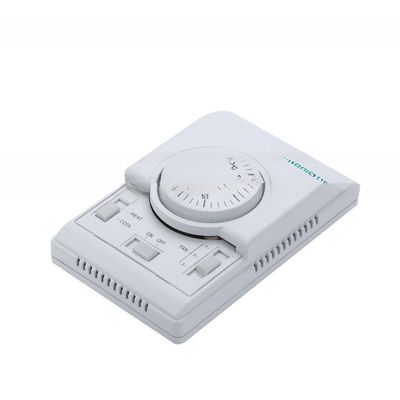

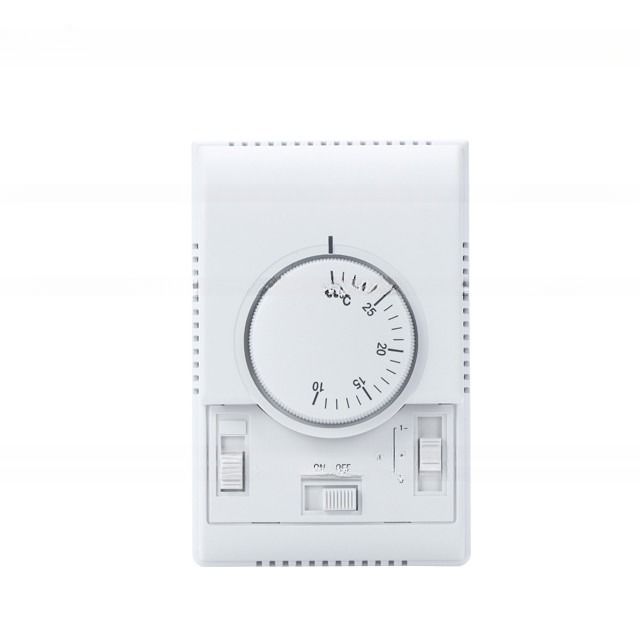

AC801A Series Digital Thermostat Manual Temperature Management
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Certification: | ISO9001,CE, RoHS |
| Model Number: | AC801A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pieces |
|---|---|
| Price: | $4.00 - $6.00/pieces |
| Packaging Details: | 60PCS/CTN |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Thermostat: | AC801A Series Manual Digital Thermostat |
| Port: | Xiamen | ||
Product Description
Thermostat Switch, Mechanical Thermostat
General
AC801A Series Manual digital Thermostats are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and water valve of heating only,cooling only and heating/cooling central air-condition and system thereof,and then detect the room temperature amongst the set-point.The rate which is indicated by index(pin) is the temperature you want.
Specification
|
Sensor |
Inflated film |
|
Power supply |
220VAC 50/60HZ |
|
Rated Current |
3A |
|
Set-point Range |
10-30 |
|
Accuracy |
at 25≤1°C |
|
Shell |
Bottom, cover and index board are made of white ABS plastic, Gray switch |
|
Ambient Condition |
-20-55°C |
|
Relative Humidity |
<92%(no condensing) |
CHARACTERISTICS
|
- Inflate film sensor |
|
- Big dial plate + switch,easy control |
|
- Accurate integration,longevity working |
|
- 86 Standard Hidden box (60mm),easy installation |
|
- Fan coil unit controllable(optional) |
|
- Long life,operation times are more than 6,000 when the contact is at 220V(full load); - 100,000 times for manual operation |
FUNCTION
|
Basic function |
- Turning On/Off |
|
- Heat/Cool Models |
|
|
- L(Light),M(Medium) and H(High) |
|
|
- Fan Speed Adjustable |
|
|
Applied to |
- Fan coil unit |
|
- Two-line Motorized Valve |
|
|
- Three-line Motorized Valve |
|
|
- Solenoid Valve |
|
|
- Three-speed angle fan valve |
