Panasonic AC Motor Stainless Steel Mechanical Ventilation with Heat Recovery Fresh Air System
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | EL-HR80AM |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 sets |
|---|---|
| Price: | $200.00 - $500.00/sets |
| Packaging Details: | Carton package with wooden box for safe export |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 1000 Set/Sets per Month |
|
Detail Information |
|||
| Material: | Stainless Steel | Size: | 1200*920*324mm |
|---|---|---|---|
| Application: | School,bedroom, | Function: | Return Air Ventilation |
| Motor: | Panasonic AC Motor | Certificate: | ISO,CE,CQC,ROHS,CCC |
| Vent Size: | DIa250mm | Max Air Flow: | 800M3/H |
| Noise: | 41DB(A) | Static Pressure: | 300Pa |
| Port: | Xiamen,China(Mainland) | ||
Product Description

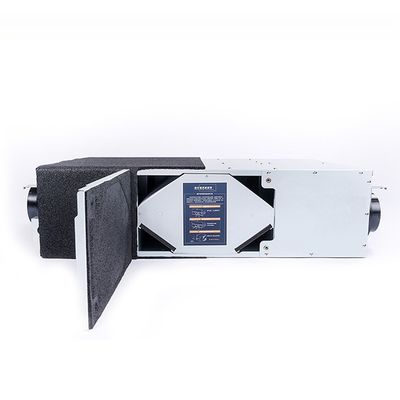

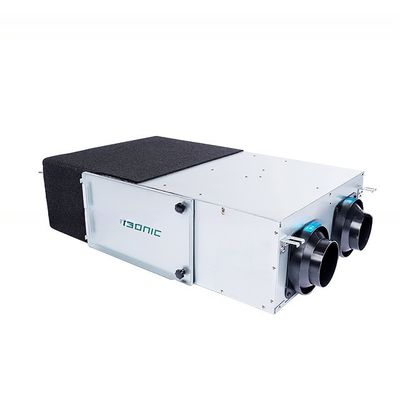

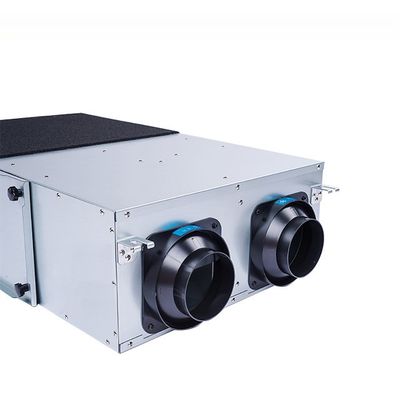

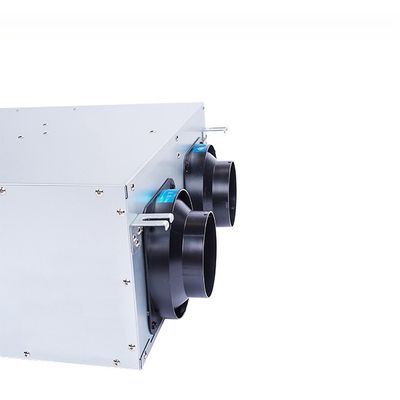

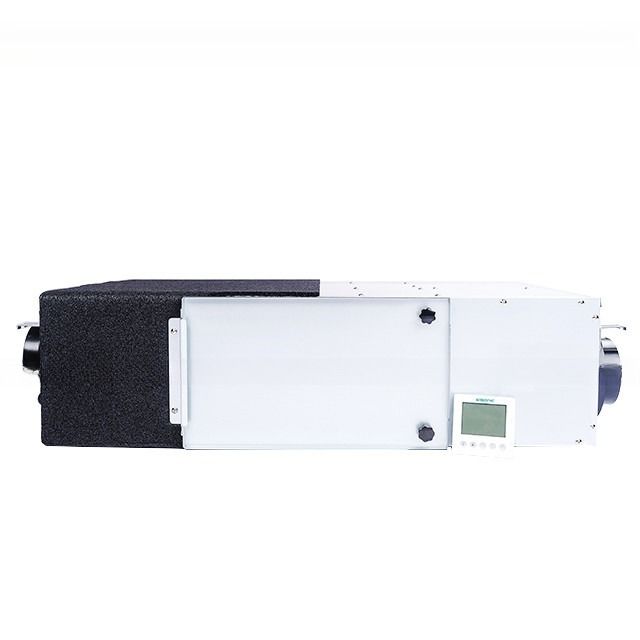

Mechanical ventilation with heat recovery fresh air system
Specifications
| Model | EL-HR15AM | EL-HR25AM | EL-HR35AM | EL-HR50AM | EL-HR80AM | EL-HR100AM | EL-HR120AM |
| Power supply(V) | 220 | 220 | 220 | 220 | 220 | 220 | 220 |
| Max.Power(W) | 69 | 96 | 165 | 205 | 350 | 380 | 400 |
| Air Flow(m³/h) | 150 | 250 | 350 | 500 | 800 | 1000 | 1200 |
| Static pressure(Pa) | 80 | 120 | 240 | 280 | 300 | 320 | 360 |
| Noise DB(A) | 28 | 31 | 36 | 39 | 41 | 45 | 48 |
| Weight(KG) | 19 | 23 | 23 | 35 | 48 | 65 | 79 |
| Dimension(mm) | 750*570*217 | 750*570*217 | 925*670*256 | 1000*690*260 | 1200*920*324 | 1250*880*332 | 1250*1100*322 |
| Tuyere size(mm) | φ110 | φ150 | φ150 | φ150 | φ200 | φ250 | φ250 |
| Primary Filter | √ | √ | √ | √ | √ | √ | √ |
How to select the suitable ventilator?
- We calculate the require airflow per hour according to the number of people, the size of the room and the amount of fresh air per hour and then select the suitable fresh air ventilator.
Fresh AirFlow Calculation Formula
- 1. Fresh Airflow Standard: 30m3/h/person(Different environment different standard)
=Number of people × 30m3/h
- 2.According to the size of room and fresh air change rate per hour
=Room size × Floor height × Fresh air change rate (times/m3/h)
Conditions of fresh air equipment location
- 1.Keep away from the rest area
- 2.Prevent exposure and rain
- 3.Duct layout is reasonable
Features
- Heat Exchange Ventilation System brings in fresh air through four air filters. The four filtrations of indoor and outdoor airflow can ensure air quality of H13 level
1. Pre-filter
- Medical environmental protection materials, filter large particles of dust and mosquitoes
2.Carbon filter
- Adsorption of formaldehyde, benzene and other harmful gases in the air
3.IFD electrostatic module
- Nearly 100% adsorption of PM2.5 and other small particles of pollutants
- Effectively reduce the bacteria and virus cross infection
4.Hepa filter(H13)
- The hight efficiency filtration is the best choise for the whole-family to enjoy heather air and filltration efficiency of more than 0.3μm particles in more than 99.97%(Only for outlet numerical, not including the room)
Brand AC Motors
- High quality motor with low noise: Use brand AC motor from well-known manufacturer, lower noise and smooth operation performance
- Motor warranty is 5 years, longer life time
- High efficiency, energy saving by 20-40%
- DC motor can be the option
The working of heat recovery ventilator
XIAMEN ELEX ELECTRONICS TECHNOLOGY AND DEVELOPMENT CO., LTD.,the son company of FUJIAN ELEX ENERGY-SAVING EQUIPMENT CO., LTD, is a high technology enterprise devoting to the R & D, design, production and sales of HVAC products. Aiming at energy saving, environmental protection and health since the establishment on 1999, FUJIAN ELEX ENERGY-SAVING EQUIPMENT CO., LTD created the brand “Elsonic” by persisting in combining the advanced energy saving and environmental protection technology of home and abroad with independent research and development, and became the largest supplier of HVAC automation control products in China. In 2014, Elsonic launched the new generation of high efficient and energy-saving ventilation system products by introducing the advanced air handling solutions, product design and development concepts from Italy, and raised the innovation revolution of air handling and heat recovery solution.
Elsonic Production Base Phrase I, which has 15280 square meters of plants, is located in Economic and Development Zone, Longyan City, Fujian Province. The main products cover thermostats, valves and actuators.
The Production Base Phrase II, covering more than 5000 square meters, is located in the core area of Fujian Longzhou Industry Park. The main products cover heat recovery unit, single-directional ventilator, bi-directional flow type ventilator and self-balanced ventilator.
With the most modern production equipments, product test labs and professional technical staff, Elsonic has the capacity of providing our clients with desired products based on fast delivery. ISO9001:2008 Quality System Certification and CE Certification were acquired already, and our products are exported to Europe, Asia, Middle East and South Africa. We welcome ODM and OEM Business Cooperation.
1. Are you a factory?
Yes. We are professional HVAC produts manufacturer for more than 18 years.
2. When and How can I get the heat recovery ventilator quotation?
Contact us directly or Leave us message, we will reply you in 1 hour in the working time. All messages will be replied whenever it comes.
3. How to select the suitable models?
Based on the fresh airflow you need. Please send us the room area, room type or application and number of persons, our team will help you select the suitable units.
4. How do you check all the goods?
We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure. And all the goods will be inspected before delivery, assure 100% no problems.
5. Where is your factory located? How can I visit there?
Our factory is located in Longyan city, Fujian Province.You can take the train to Longyan railway station or take a plane to Xiamen airport. We will pick you up to our factory.
Pls feel free to contact us if you have any interest,the reply will get back to you soon.
