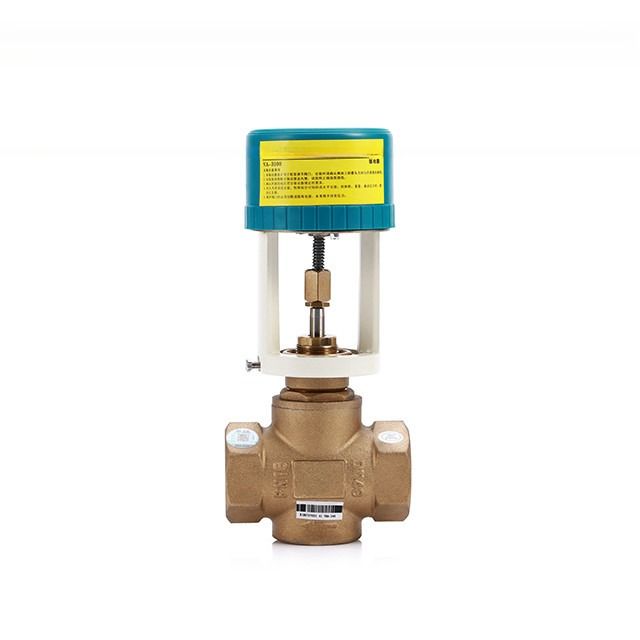

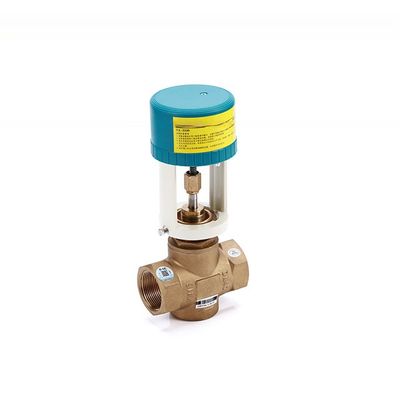

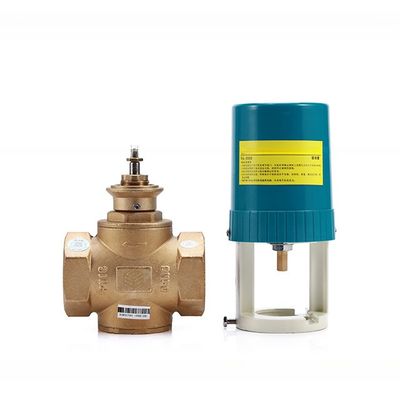

Proportional Modulating HVAC System Fan Coil Unit with 2-Way Control Motorized Valve
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Certification: | CE, RoHS, ISO9001 |
| Model Number: | VA-VB3000 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | $30.00 - $150.00/pieces |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Application: | General | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Port: | Xiamen | ||
Product Description
Motorized Actuator is electromechanical product.
Technical data
Material | Gear,Stainless steel,Litharge,Reduce down |
Panel | zine-plated steel; |
Bracket | Die-casting Aluminum alloy Shell:fire-proof PC ABS plastic. |
VA-VB 3000 Series Actuator has reversible increasing and proportional two control mode | |
Characteristics:
-Low AC voltage synchronic reversible motor |
-The action uses gear to transit.Output gear rollers are supported by surface rolling bearing,which ratate around the central bearingIII. Valve working position indicator. |
-010V DC or 420mA DC control (For VA-3101(VA-3201)and VA-3102(VA-3202)only) |
-Apply to 24mm,36mm,40mm,or 42mm stroke can be elected by Jumper |
-Have overtime protection function,and failure protection function when without control signal |
-Have 010V DC feedback signal |
Function

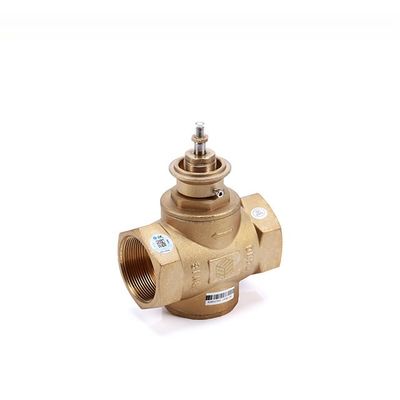

Can be mounted on VB-VB 7000 Series Brass Valve, if be with different connectors,it can be fitted with other kinds of valve bodies |
