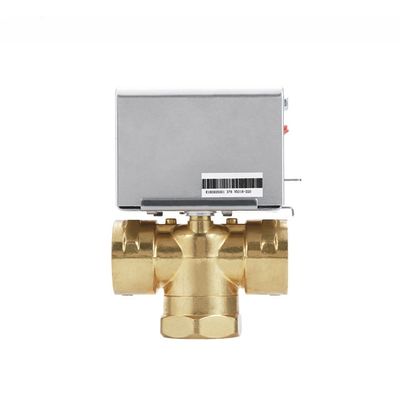

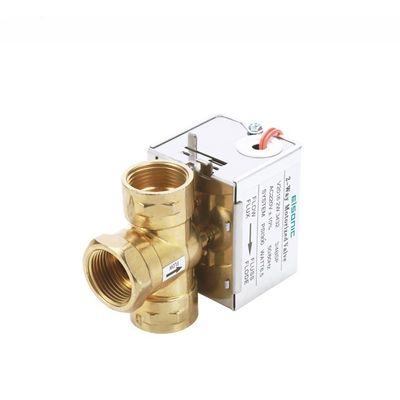

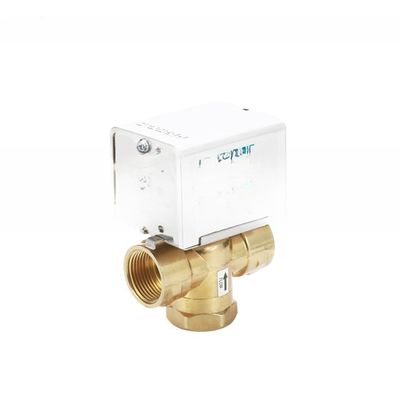

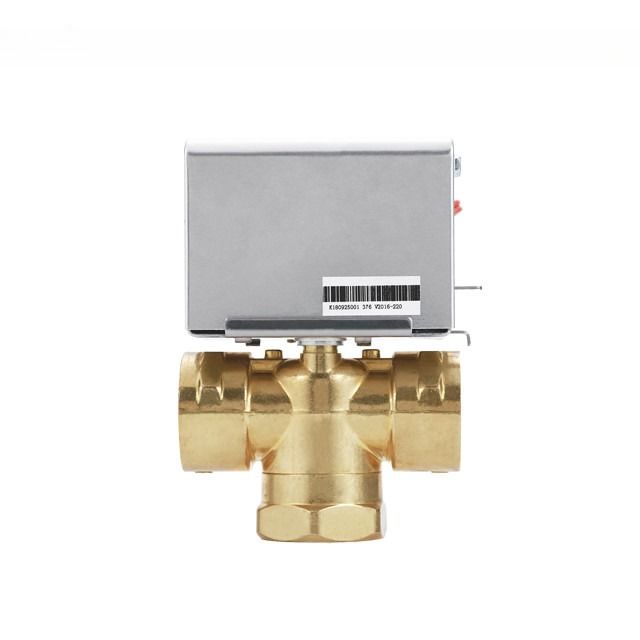

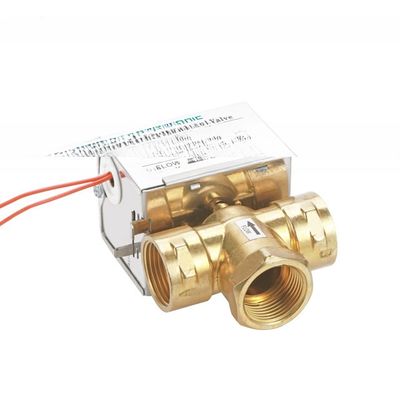

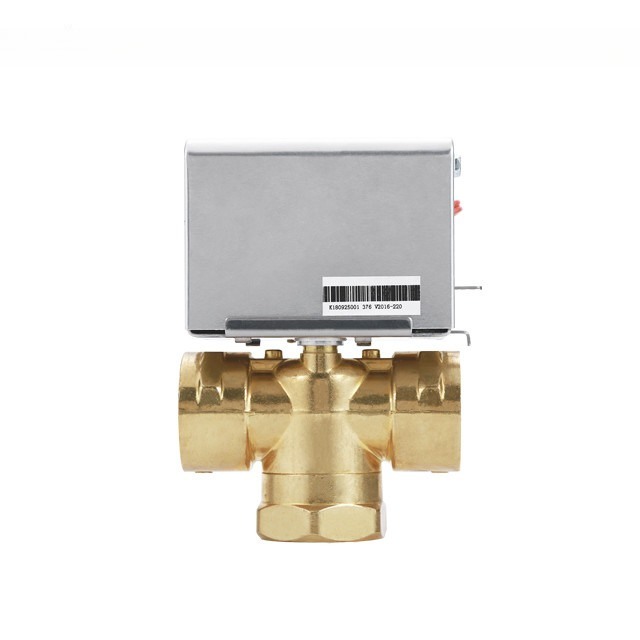

2/3 Way Spring Return Motorized Zone Valve for Water Control and Electric Actuated Gate
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | V2016 |
Payment & Shipping Terms:
| Price: | $13.00 - $16.00/units |
|---|---|
| Packaging Details: | electric motor operated valve 1 UNIT/BOX SIZE: 11*12.5*7.5CM 20 UNIT/CARTON SIZE: 39*27*23CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Application: | General | Port Size: | G1/2 |
|---|---|---|---|
| Material: | Brass | Power: | Hydraulic |
| Temperature Of Media: | High Temperature, 5~95C | Pressure: | Medium Pressure |
| Structure: | BALL, ON/OFF | Media: | Water, Water |
| Name: | Electric Motor Operated Valve | Type: | HVAC Systems Valve |
| Power Consumption: | <8W | Valve Body Material: | Brass |
| Closing Pressure: | 0.2Mpa-DN15, 0.18Mpa-DN20, 0.15Mpa-DN25 | Valve Close Time: | <7S |
| Sise: | DN15(1/2''),DN20(3/4''),DN25(1'') | Port: | Xiamen |
Product Description

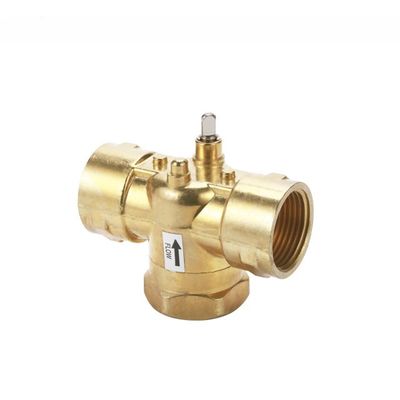

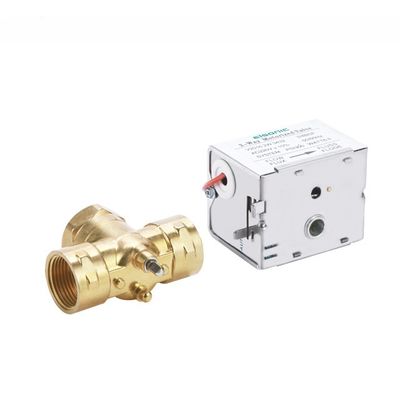

Motorised Valves are made up of Actuator and Valve Body.
Characteristics
V2016 Series Motorized Valves are smart,everlasting,less noise and able to work under high temperature environment.
The Valve is closed,configurations of valve body are closed off;the thermostat (NTC) transfers a signal to actuator that will connect to power,and then open valve,input hot water or freezed water to fan coil unit;if the room temperature reaches to set-point,thermostat transfers a signal to actuator to cut off the power,and spring switch returns,valve is closed,and the hot or freezed water is block to fan coil unit.Therefore,the room temperature could be controlled in the set-point through valve opened or closed.
Material
Actuator | Stainless steel plate,Aluminum cover |
Valve Body | Forged Brass |
Stem | Brass/Stainless steel |
Seat | Brass |
Paddle | Nitrile-butadiene rubber(NBR) |
Data
Model:V20162w1220 | Config.:normally closed two-way |
V20162w1232 | diverting three-way |
V20163w1243 | normally closed two-wa y |
V20162w3420 | normally closed two-way |
V20162w3432 | normally closed two-way |
V20163w3446 | diverting three-way |
V20162w1168 | normally closed two-way |
V20163w1157 | diverting three-way |
Connection type:G1/2 Kv:2.0 | Differential pressure(MPa):0.20 |
G1/2 3.2 | 0.15 |
G1/2 4.3 | 0.15 |
G3/4 2.0 | 0.20 |
G3/4 3.2 | 0.15 |
G3/4 4.6 | 0.15 |
G1 5.7 | 0.10 |
G1 6.8 | 0.10 |
Medium;Hot water | |
Liquid temperature:2-95 | |
Pressure:(MPa):2.5 | |
Ambient temperature:<40 | |
Power Supply:220V(±10%);50-60HZ | |
Storage temperature:-40+70 | |
Function
Used to controll the flow of hot water,freezed water in heating, cooling or air-conditioning applications,so as to control room temperature indirectly. |
