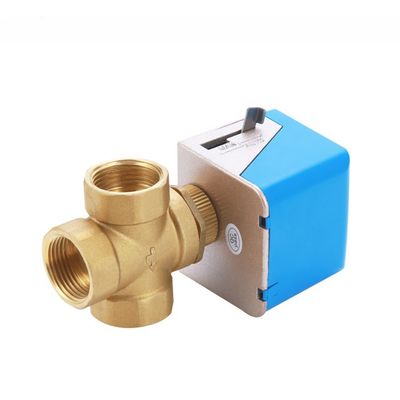

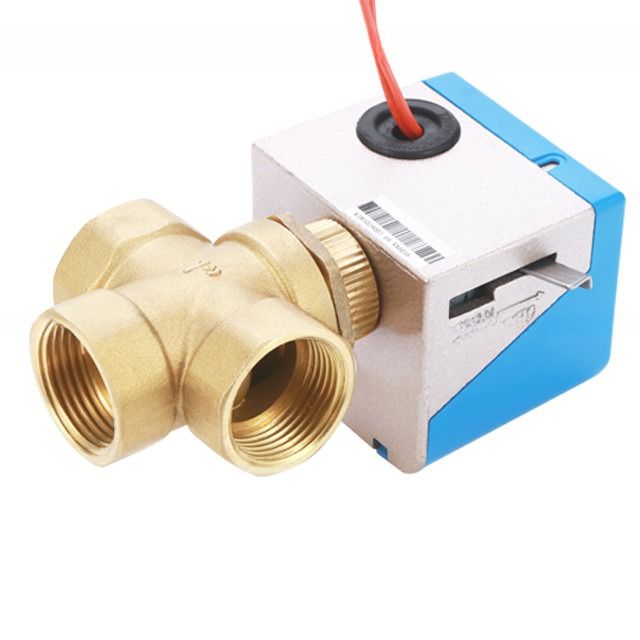

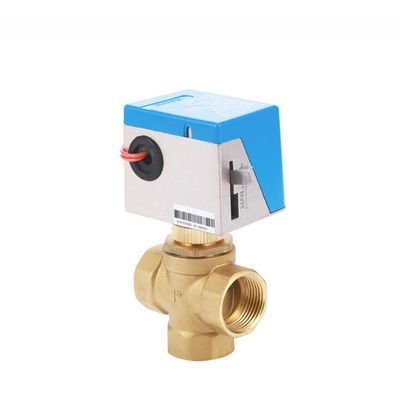

Electric Water Diverter 3-Way Control Motorized Zone Valve for DN20 Brass Fan Coil Unit
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | V6016 |
Payment & Shipping Terms:
| Price: | $15.00 - $18.00/pieces |
|---|---|
| Packaging Details: | electric motor operated valve 1 UNIT/BOX SIZE: 11*12.5*7.5CM 20 UNIT/CARTON SIZE: 39*27*23CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 500000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Application: | General | Port Size: | Standard |
|---|---|---|---|
| Material: | Brass | Power: | Hydraulic |
| Temperature Of Media: | Normal Temperature, 5~95°C | Pressure: | Medium Pressure |
| Structure: | BALL, ON/OFF | Media: | Water, Water |
| Name: | Electric Motor Operated Valve | Type: | HVAC Systems Valve |
| Valve Body Material: | Brass | Closing Pressure: | 0.2Mpa-DN15, 0.18Mpa-DN20, 0.15Mpa-DN25 |
| Size: | DN15(1/2''),DN20(3/4''),DN25(1'') | Valve Body Connnection: | Female Screw BSPP/NPT |
| Power Consumption: | <8W | Port: | Xiamen |
Product Description

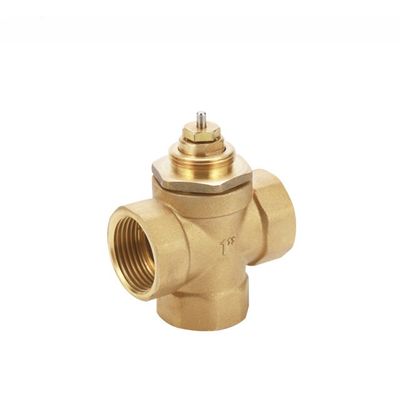

Motorized Valve(Two-way Motorized Valve, Valve, Three-way Motorized Valve, Motorised Valve) are made of Actuator and Valve Body.
General

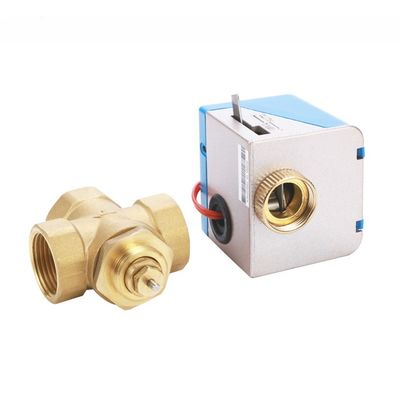

V6016 electric heating motorised control valve is closed,configurations of valve body are closed off;the thermostat (NTC) transfers a signal to actuator that will connect to power,and then open valve,input hot water or chill water to fan coil unit,if the room temperaure reaches to set-point,thermostat transfers a signal to actuator to cut off the power,and spring switch returns, valves is closed,and the hot or chill water is block to fan coil unit.Therefore,the room temperature could be controlled in the set-point through valve opened or closed.The connect type is screw between actuator and valve body.We could install the body firstly,and then actuator.V6016 series are smart,everlasting,less noise,less space and able to work under high temperature environment
Characteristics
Material | Copper |
Power Consumption | 7W |
Actuator | Single direction motorized,drive valve spring return |
Liquid Temperature | 2-94 |
Pressure | 1.6MPa |
Ambient Temperature | 060 |
Storage Temperature: | -2060 |
Cooperation time with AC801A: |
|
Fully open | 10s after power on |
Fully close | 5s after power off |
Function
Used to control the flow of hot water,chill water in heating,cooling or air-conditioning applications,so as to control room temperature indirectly. |
