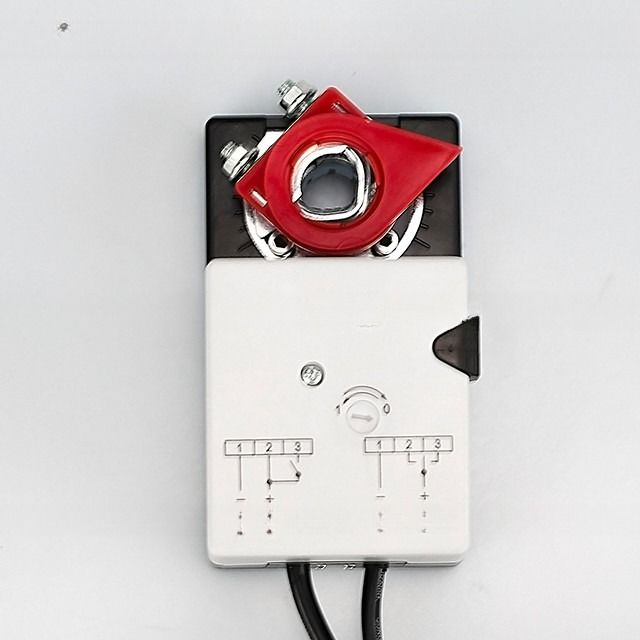

6Nm Electric Damper Actuator for HRV/ERV AC Ventilation 24V Fire Smoke Control Air Valve
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Elsonic |
| Model Number: | SJ0624-K/KF |
Payment & Shipping Terms:
| Minimum Order Quantity: | 100 pieces |
|---|---|
| Price: | $35.00/pieces 100-499 pieces |
| Packaging Details: | Actuator damper valve 1 UNIT/BOX SIZE |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 50000 Acre/Acres per Month |
|
Detail Information |
|||
| Warranty: | 2 Years | After-sale Service: | Online Technical Support, Free Spare Parts, Return And Replacement |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Total Solution For Projects | Application: | Hotel, Ventilation, Air Conditioning |
| Design Style: | Modern | Type:: | Actuator |
| Torque: | 6Nm | Voltage:: | 24VAC/24VDC |
| Wire:: | 3 Wires | Structure:: | On/off/2-point/3-point |
| Ambiemt Temperature:: | -20~50℃ | Power Consumption: | 3W |
| Running Time: | 25S (95 Degree) | Protection Degree: | IP54 |
| Port: | Xiamen | ||
Product Description
Electric damper actuator 6Nm fire smoke control air valve 24V for HRV/ERV, AC, ventilation
This actuator is suitable for circular spindle with size 10-18mm dia, or square spindle size with 6-12mm dia, length larger than 40mm. The rotating direction can be reversed by changing the CCW/CW swith side of the actuator. Output torque could be 6 N.m to control air space around 0.5 -1 square meters with 3-point controlling way.
--For operation of air control dampers in HVAC and all kinds of machine system
-- Torque: 6Nm
-- Nominal Voltage: 24VAC/ 24VDC
-- Control: On/Off/2-point/3-point
-- KF type include 2 groups of auxiliary switches
| Technical Data
|
