CE Certified Damper Actuator for Precise Airflow Regulation in HVAC Systems
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | ERD10/12 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 300 pieces |
|---|---|
| Price: | $20.00 - $80.00/pieces |
| Packaging Details: | one piece in a paper box |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 500000 Piece/Pieces per Month |
|
Detail Information |
|||
| Certificate: | CE, RoHS | Port: | Xiamen |
|---|---|---|---|
Product Description

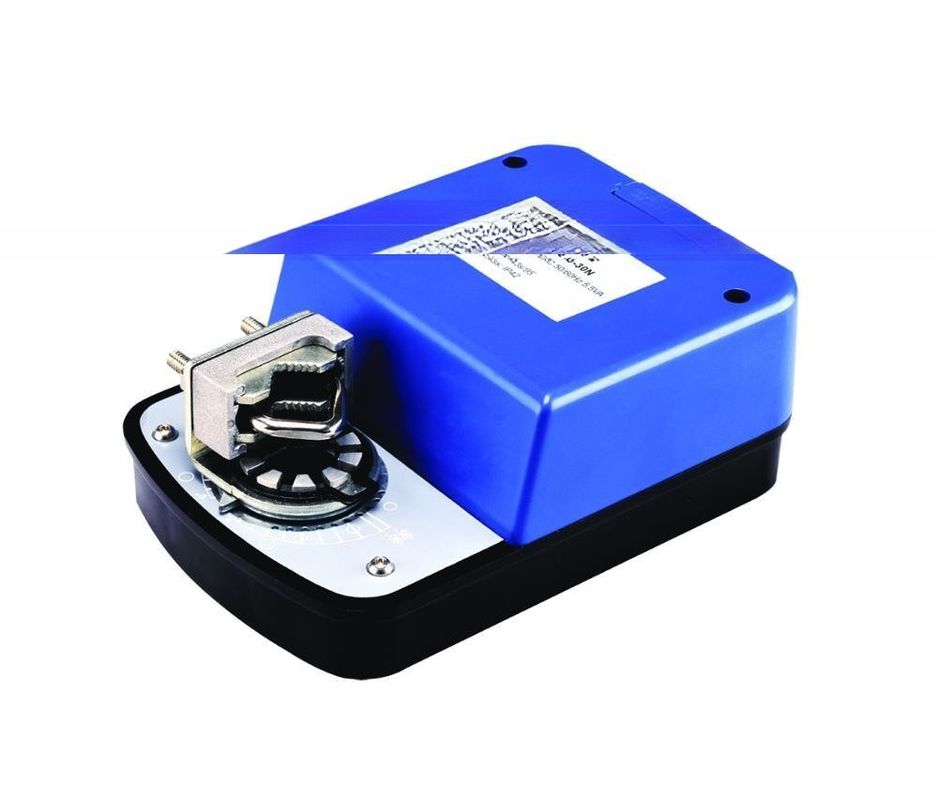

Damper Motor / Damper Actuator
General
ERD10/12 Series Modulating Damper Actuator is widely used to control damper system, the angel travela and motorized ball valve in HVAC system.
Control Signal: DC 010VDC2~10V,420mAfeedback signal
Different Torque: 4Nm6Nm8Nm10Nm15Nm20Nm25Nm30Nm
Specification
MODEL | ERD10/12 | |
TORQUE | ≥2Nm | |
OPERATION TIME (50Hz, 90°) | ≈108s | |
POWER SUPPLY | 24Vac±10; 4VA | |
CONTROL SIGNAL | 0-10Vdc; 2-10Vdc; 0-20mA dc or 4-20mA dc | |
CABLE | 0.5~1.5mm2 | |
ROTATE ANGLE | 90º ≤Mechanical limitation ≤ 95º | |
NOISE LEVEL | Maximum 45dB(A) | |
POSITION INDICATION | 0~10Vdc position feedback signal output | |
IP CLASS | IP 54 | |
AMBIENT TEMP. | -5 ~ +50 | |
STORAGE TEMP. | -30 ~ +70 | |
USEFUL LIFE | >60000 cycles | |
Easy Installation:
*
Fix the actuator to the damper shaft by universal grip. | Various fixing support of special actuator(refer to the photo of the standard configeration of installation support) will be supplied according to the customers' requirements. By adjusting the pot, the rotation angle of the actuator can be adjusted. And the matching of working range and feedback signal will be completed automatically. |
convinient function checking:
| The testing for the function of damper operation is convinient as well: By pressing the manual button of the actuator, the actuator will escape from the gearing. User can operate the damper manually by pressing the manual button without releasing. Operation without power is forbidden. |
Good and reliable performance
| With the function of overload protecting, actuator adopts dual-rotation Hysteris Synchronous Motor. Unnecessary with limitation switch, the acutaor will stop by clutching the actuator when running to the end. The actuator has the mechanical limit ation position of adjustable precision, timing protection function for circuit and deadlocking status protecting function.
|
Great expansibility | Various control signal and feedback signal is acceptable and user can do programmation according to the detailed requirements with code-dialling program table. |
