Water Underfloor Heating Manifold with M30*1.5mm Connection Size and Thermal Actuator
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Elsonic |
| Model Number: | E60 |
Payment & Shipping Terms:
| Price: | $6.50/pieces 1-99 pieces |
|---|---|
| Packaging Details: | thermal actuator 1 UNIT/BOX SIZE: 11*12.5*7.5CM 20 UNIT/CARTON SIZE: 39*27*23CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Material: | Anti-flammable PC +ABS | Project Solution Capability: | Graphic Design, 3D Model Design, Others |
| Application: | Hotel, Radiator Mainfold Heating | Design Style: | EUROPEAN |
| Type: | Floor Heating Parts | Floor Heating Part Type: | Floor Heating Thermostats |
| Certifications: | CE | Type:: | NC/NO |
| Power Consumption: | 3.3VA | Voltage:: | AC220V/230V/110V/24V |
| Thrust: | 110Nm | Stroke: | > 4.0 Mm |
| Full Travel Time: | 6min | Connection Size: | M30*1.5mm |
| Style: | Cost Effective | ||
Product Description

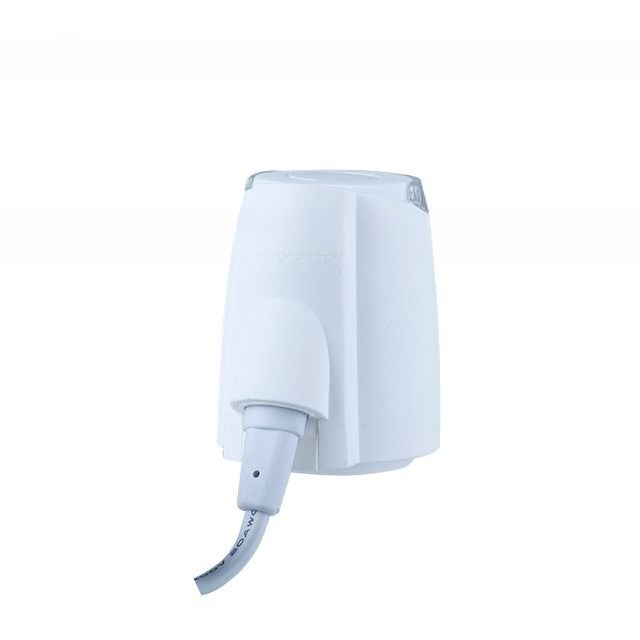

water underfloor heating manifold 230v thermal actuator
| General E60 heating system electronics electric thermo actuator is electric driving part of the controlvalve which is designed for heating manifold, zone valve and dynamic balancing valve. It applies to the control of open/close of the valve in water heating system or central air conditioning water system. In the water heating system, it is directly installed on return pipe of the distributing manifold or constant temperature valve body. Normally open type actuator will automatically close when power on, while normally closed type actuator will automatically open when power on.
Technical Data
Characteristics
|
