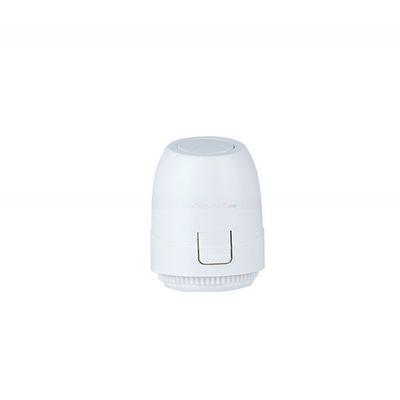

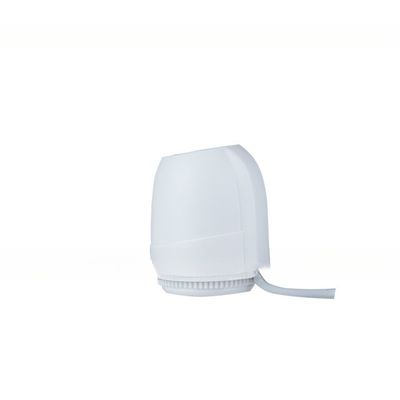

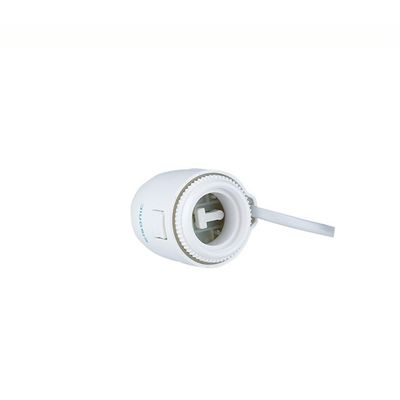

CE certified waterproof electric thermal actuator for floor heating and radiators
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Elsonic |
| Model Number: | E66 |
Payment & Shipping Terms:
| Price: | $6.50/pieces 1-99 pieces |
|---|---|
| Packaging Details: | thermal actuator 1 UNIT/BOX SIZE: 11*12.5*7.5CM 20 UNIT/CARTON SIZE: 39*27*23CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Warranty: | 1 Year | Floor Heating Valve: | Thermostatic Mixing Valve |
|---|---|---|---|
| After-sale Service: | Online Technical Support, Free Spare Parts | Material: | Anti-flammable PC +ABS |
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Application: | Hotel, Floor Heating System |
| Design Style: | Modern | Type: | Floor Heating Parts |
| Floor Heating Part Type: | Floor Heating Thermostats | Certifications: | CE, ISO |
| Type:: | Floor Heating Systems, Floor Heating Parts | Output Power:: | 180w |
| Voltage:: | AC220V/230V/110V/24V | Wire:: | 2 Wires |
| Structure:: | Open/close | Ambiemt Temperature:: | -5~60℃ |
| Force:: | 110N | Valve Interface:: | Cap Nut M30X1.5mm |
Product Description
E66 heating system electronics electric thermo actuator
Connected by nuts, simple installation and convenient disassembly
Travel position and aperture indication
Paraffin Wax Thruster, PTC heating
Spring return function
Streamline design
Simple installation
Luxury design
No noise

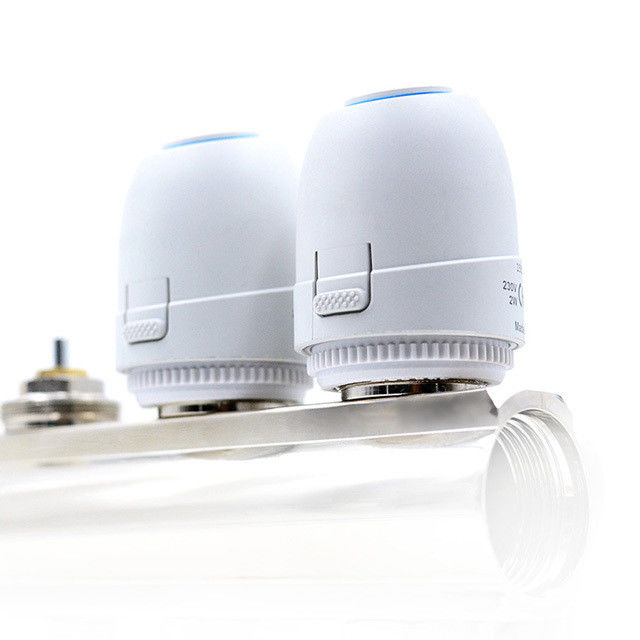

| General E66 heating system electronics electric thermo actuator is electric driving part of the controlvalve which is designed for heating manifold, zone valve and dynamic balancing valve. It applies to the control of open/close of the valve in water heating system or central air conditioning water system. In the water heating system, it is directly installed on return pipe of the distributing manifold or constant temperature valve body. Normally open type actuator will automatically close when power on, while normally closed type actuator will automatically open when power on.
Technical Data
Characteristics
|
