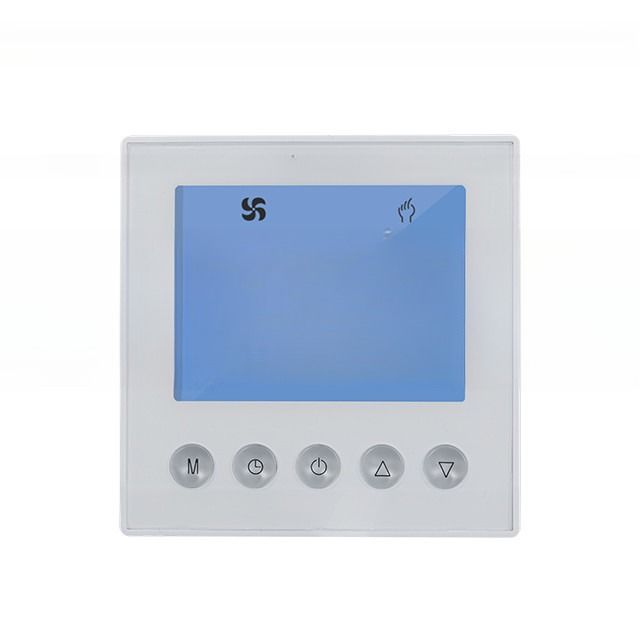

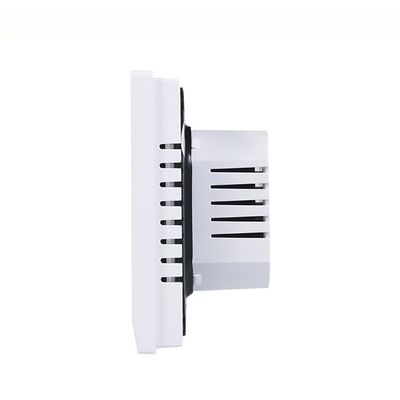

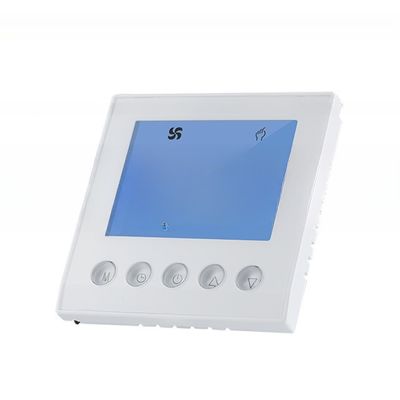

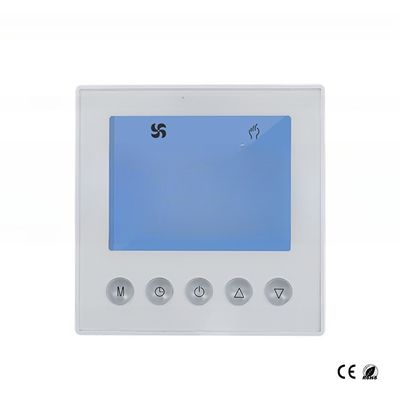

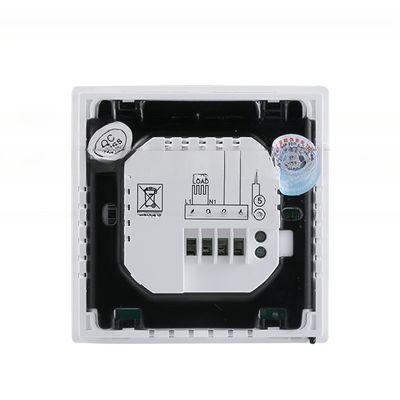

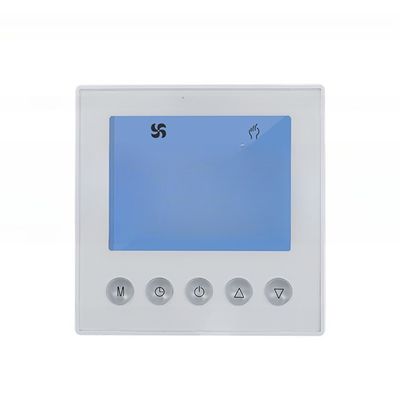

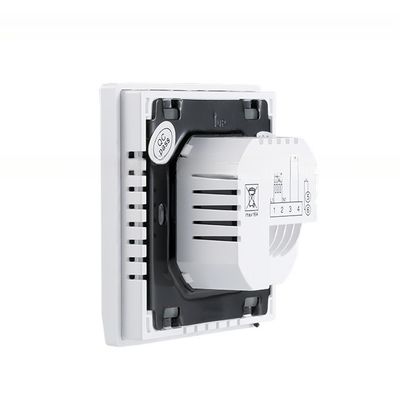

Square Shaped Pipe Fan Coil Unit with Modbus RS485 Fan Speed Control Room Thermostat
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | AC331 |
Payment & Shipping Terms:
| Price: | $10.00 - $20.00/pieces |
|---|---|
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Backlight: | Blue Backlight |
| Water System: | Two Control Or Four Control | Material: | Acrylic |
| Screen: | LCD | Shape: | Square Shaped |
| Size: | 86mm*86mm*16mm | Accuracy: | ±1℃ |
| Temperature Control Range: | 5℃-35℃ | Working Environment Temperature Range: | 0℃-50℃ |
| Power: | RS485 MODBUS | ||
Product Description
AC331 is an Internet WIFI Thermostat which allows user to control room temperature locally or remotely via Mobile App. By comparing between measured temperature (by internal temperature sensor) and preset desired temperature, it realizes the auto control of motorized valves and fan motor to keep a constant room temperature. It applies to the control of 2-pipes and 4-pipes Fan Coil Unit.
| Load Current: | 1A(Inductive Current) 2A(Resistive Current) | Dimensin: | 86mm*86mm*15mm |
| Power Supply: | AC100~240V 50/60HZ | Temperature Control Accuracy: | <1.5W |
| Temperature Range: | 10°C~30°C | Sensing Components: | NTC |
