Floor Heating Parts R330 Wifi Underfloor Heating Room Thermostat 86*86mm Installation Box
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | R330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pieces |
|---|---|
| Price: | $10.00 - $30.00/pieces |
| Packaging Details: | Floor Heating Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month |
|
Detail Information |
|||
| Color: | White | Type: | Floor Heating Parts, Floor Heating Thermostats |
|---|---|---|---|
| Application: | Water Heating/Electric Heating System/Boiler | Power Supply: | 24VAC/110VAC/220VAC |
| Display Accuracy: | 0.5℃ | Temperature Range: | 5~35℃ |
| Programmable: | 5+2 Four Periods | Sensor: | Internal Or External |
| Communication: | WIFI / RS485 / Modbus / Zigbee | Installation Box: | 86*86mm |
| Current Load: | 3A/16A | Port: | Xiamen |
Product Description

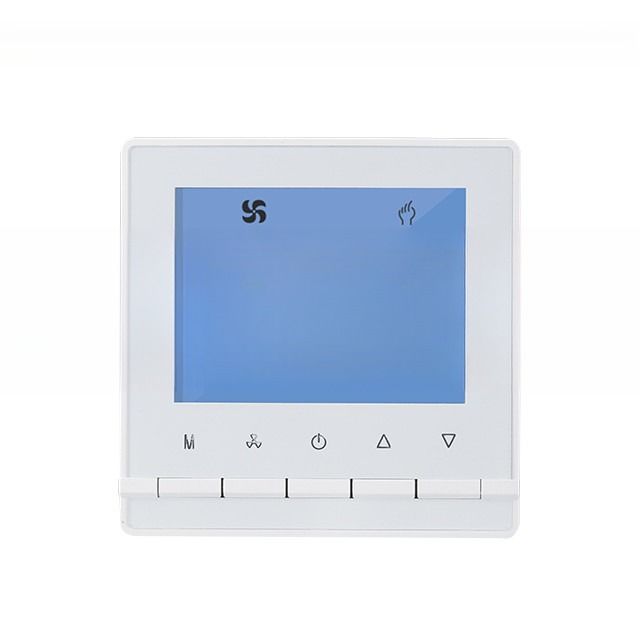

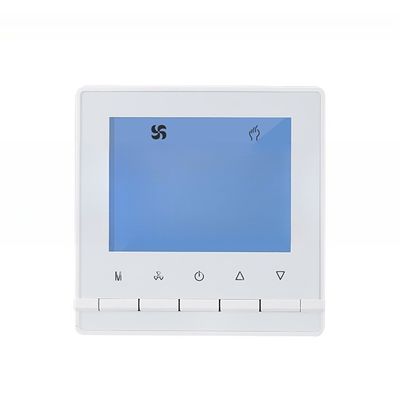

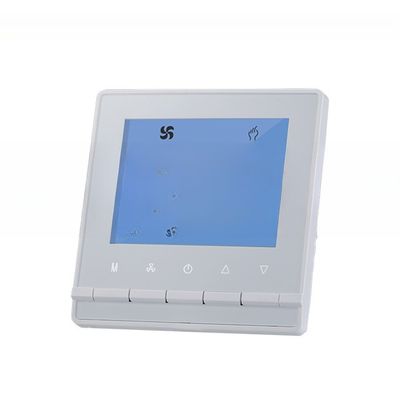

R330 Wifi underfloor heating room thermostat Smart thermostat
Wifi smart thermostat (IOS/Android)
Streamlin Acrylic panel design
Dual-temperature control
Elegant white backlight
Fit for EU junction box
R330 room heating thermostat is an Internet WIFI Thermostat which enable user to control room temperature on site or remotely via App with mobile phone(IOS/Android).
With dual-temperature control function, temperature of heating equipment and ambient temperature are measured simultaneously. When temperature of the load (usually the floor temperture) is higher than maximum limit temperature, thermostat stops heating to prevent the load from overheat; when ambient temperature is lower than the set-point and temperature of the load is lower than minimum limit temperature, thermostat opens load for anti-frost in order to lengthen the lifespan of the load.
Technical Data
Power Consumption: <1.5W
Timing Error:<1%
Power Supply: 200~240VAC 50/60Hz
Load Current: GA: 2A GB: 16A
Temperature Range: 5-35℃ Accuracy: ±1℃
Size:86mmx86mmx16mm(H x W x T)
