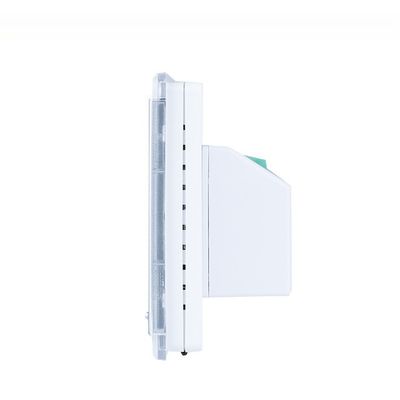

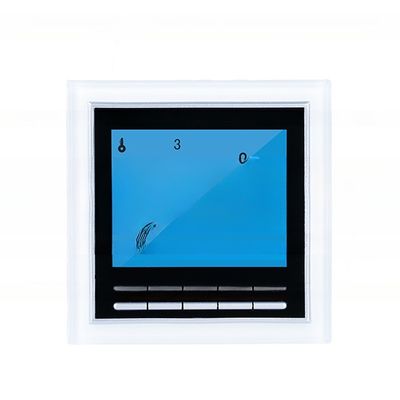

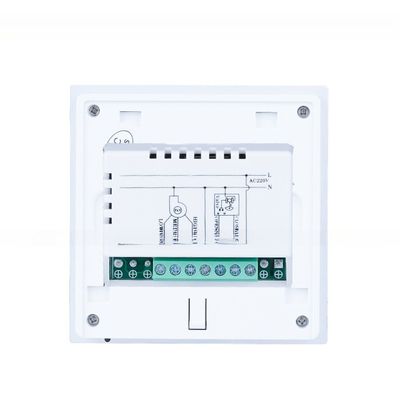

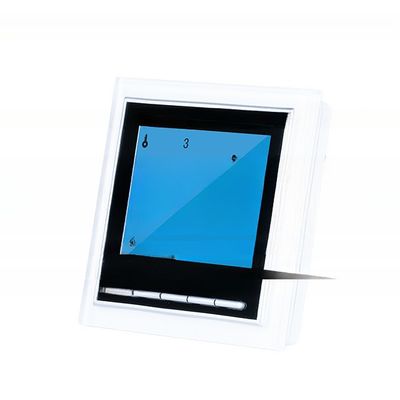

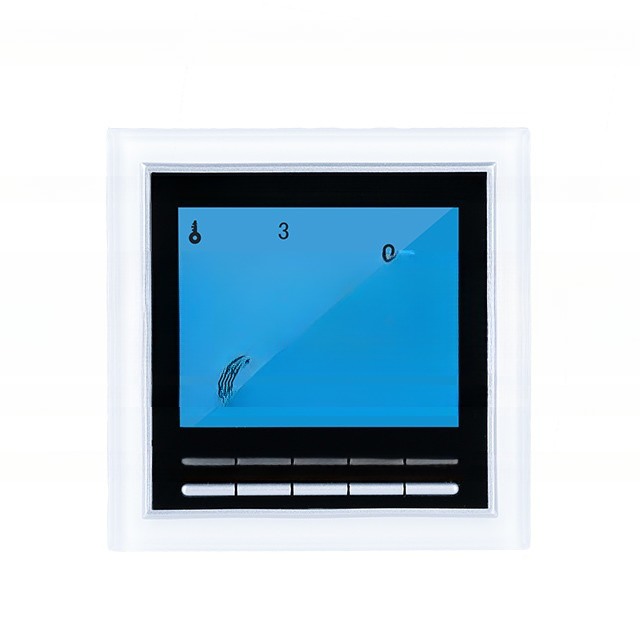

Modbus LCD Programmable WiFi Smart Chiller Water Digital Fan Coil Thermostat Controller
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | AC322 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 500 pieces |
|---|---|
| Price: | $12.00/pieces 500-999 pieces |
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 10000 Piece/Pieces per Month |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Type: | HVAC Systems,Thermostat |
| Application: | FCU/Central Air Conditioning | Temperature Range: | 5℃-35℃ |
| Power Supply: | 24VAC/110VAC/220VAC | Max Load: | Inductive 2A, Resistive 4A(5A Rating Relay) |
| Display Accuracy: | 0.5℃ | Product Color: | White |
| Ambiente: | Storage:-20C~60C, Ambient Operating: 0°C To 50°C, Humidity:5~95% | Communication: | WIFI / RS485 / Modbus / Zigbee |
| Suitable System: | Two Pipe/Four Pipe | Port: | Xiamen |
Product Description
AC322 is an Internet WIFI Thermostat which allows user to control room temperature locally or remotely via Mobile App. By comparing between measured temperature (by internal temperature sensor) and preset desired temperature, it realizes the auto control of motorized valves and fan motor to keep a constant room temperature. It applies to the control of 2-pipes and 4-pipes Fan Coil Unit.
1.Load Currrent: 1A(Inductive Losd) 2A(Resistive Load)
2.Dimension: 86mm*86mm*15mm(H*W*T)
3.Power Supply: AC100~240V 50/60HZ
4.Temperature Control Accuracy: ±1°C
5.Self-power Consumption: <1.5W
6.Temperature Range:10°C~30°C
7.Sensing Components: NTC
8.Time Error: <1%
1.Room temperature compensation and correction(by panel directly).
2.Supports locally control and remotely control via Mobile App.
3.With WIFI module, able to connect to Home Router by WIFI.
4.Time display function, free choice of various modes.
5.Monitor room temperature, setpoint.
6.Multi-functions and easy operations.
7.Apply to 2/4 pipe FCU system.
8.Soft white light, eye-friendly.
9.Large-screen LCD display.
10.Mysterious black light.
11.High reliability MCU.
12.Acrylic frame.
| Models | Control Modes | Fan 3-speed | Applications | Fan Status | |||||||||
| Heat | Cool | Vent | Manual | Auto | On/Off Damper | Three-angle Dmaper | 2-pipe FCU System | 4-pipe FCU System | 2-wire Motorized Valve | 3-wire Motorized Valve | 1.No Cycling Fan | 2.Cycling Fan | |
| AC322A | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| AC322B | √ | √ | √ | √ | √ | ||||||||
| AC322C | √ | √ | √ | √ | √ | √ | √ | √ | √ | ||||
| AC322D | √ | √ | √ | √ | |||||||||
| AC322E | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | |||
1.4 million-unit annual capacity can fill bulk orders with ease.
2.Products come withe CE, RoHS and ISO9001:2000 marks.
3.40 engineers handle your OEM/ODM orders.
