Touch Screen Water Floor Heating Room Thermostat Piano Type Button Max Load 3A Water
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | elsonic |
| Model Number: | R306 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pieces |
|---|---|
| Price: | $15.00 - $25.00/pieces |
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts, Return And Replacement |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Application: | Hotel, FCU/Central Air Conditioning |
| Design Style: | Modern | Type: | HVAC Systems,Thermostat |
| Power Supply: | 24VAC/110VAC/220VAC | Max Load: | 3A Water, 16A For Electrical |
| Display Accuracy: | 0.5℃ | Temperature Range: | 5~35℃ |
| Product Color: | White | Ambiente: | Storage:-20C~60C, Ambient Operating: 0°C To 50°C, Humidity:5~95% |
| Suitable System: | Two Pipe/Four Pipe | Communication: | WIFI / RS485 Modbus |
| Port: | Xiamen | ||
Product Description

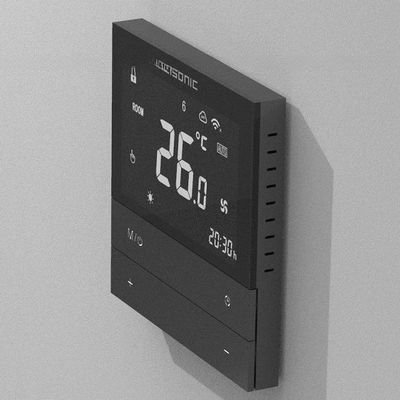

Touch screen Water Floor Heating room thermostat R306
General
R306 Touch Screen Thermostats are used to control room temperature in commercial,industrial and residential environment via controlling fan coil units and motorized valve,motorized fan and valve of heating only,cooling only and heating/cooling central air-condition and system thereof,and uses NTC to detect the room temperature and compares it with the set-point so as to automatically keep the room temperature stable.
Characteristics
| - Bright back-lit display with interactive touch screen; |
| - Setting Turn on/off within 24 hours |
| - Adjustable manual on/off motorized actuator valve, thermal valve |
| - Attractive modern styling and smart out-looking(12mm only for |
| - May connect to main system |
| - Manual operation available |
| - Data Memory:If the power cut off accidentally,it could be continuing to work by order if the power return |
Technical data
| Sensor | NTC |
| Power supply | 220VAC 50/60HZ |
| Rated Current | < 3A |
| Set-point Range | 5ºC - 35ºC |
| Accuracy | ±1ºC |
| Measured Temperature | 140 |
| Power Consumption | ≤1.5 W |
| Shell | White PC plastic |
| Relative Humidity | <92%(no condensing) |
| Ambient Condition | -5-55 ºC |
FUNCTION
| Basic fuction | - Manual operation available |
| - May connect to main system; | |
| - Turn on/off power within 24 hours | |
| - Adjustable manual 3-speed or automatic fan speed control: High,Medium and Low | |
| - Data Memory: If the power cut off accidentally,it could be continuing to work by order if the power returns | |
| Applied to | - water heating system |
| - Boiler heating | |
| - Radiator heating | |
| - electrical heating system | |
| - Heating Equipment | |
| - underfloor heating & VAV fan coil control |
