HRV/ERV Digital LCD Thermostat Modern for Fresh Air System W3385
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | W3385 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pieces |
|---|---|
| Price: | $20.00/pieces 200-499 pieces |
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11X9.5X7 cm 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Application: | Apartment |
| Design Style: | Modern | Backlight: | Black, White Backlight |
| Sensors: | PM2.5, CO2, TVOC, Temperature, Humidity, Etc | Material: | Acrylic |
| Screen: | Digital LCD | Shape: | Square Shaped |
| Size: | 86mm*86mm*16mm | Accuracy: | ±1℃ |
| Temperature Control Range: | 5℃-35℃ | Working Environment Temperature Range: | 0℃-50℃ |
| Interface: | RS485 MODBUS, Tuya WiFi | ||
Product Description

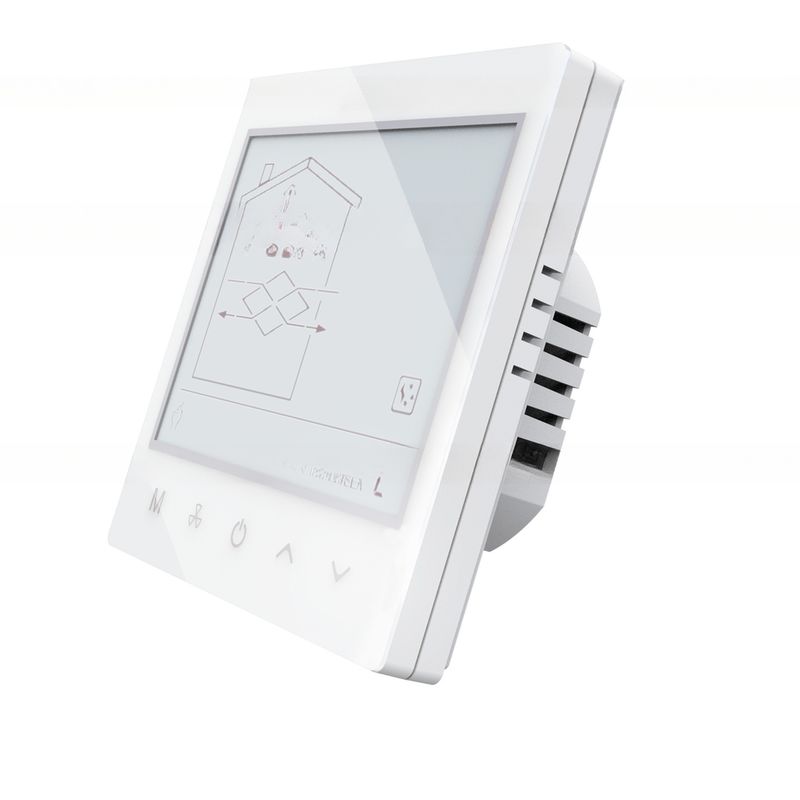

Smart Ventilation Controller HRV/ERV digital LCD thermostat acrylic touch screen for Fresh Air System Home Office
w3382 series controller for ven system by using large-screen LCD display, through the thermostat internal NTC (negative temperature index) temperature sensor, detecting the indoor temperature and display. By setting the working mode to control the bypass valve closed and open, meanwhile controlling the three-speed fan. It can be programmed for a week to achieve the timer switch and work in the set mode.
Display
Technical data
| Power Consumption | <1.5W |
| Timing Error | : <1% |
| Power Supply | 200~240VAC 50/60HZ |
| Load Current | Inductive: 1A, Resistance: 2A |
| Temperature Rang | 5~35 |
| Accuracy | +-1 |
| Size | 86*86*16mm (H*W*T) |
