Mirror Screen FCU Thermostat with RS485 Modbus Communication and Wide Temperature Range
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | AC301 |
Payment & Shipping Terms:
| Price: | $32.50/pieces 1-499 pieces |
|---|---|
| Packaging Details: | single small carton with 11.0mm*10.0mm*7.0mm<br>84CTN per big carton |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 500000000 Piece/Pieces per Year |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Application: | Office Building |
| Design Style: | Modern | Backlight: | Negative Backlight |
| Water System: | 2-pipe Or 4-pipe | Material: | Acrylic Touch Screen |
| Screen: | LCD | Shape: | Square Shaped |
| Size: | 86mm*86mm*15mm | Accuracy: | ±1℃ |
| Temperature Control Range: | 5℃-35℃ | Working Environment Temperature Range: | 0℃-50℃ |
| Power: | RS485 MODBUS | Port: | Xiamen, China |
Product Description

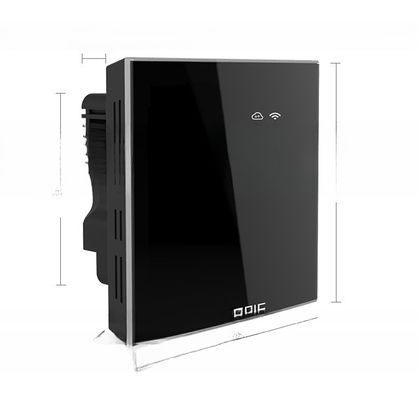

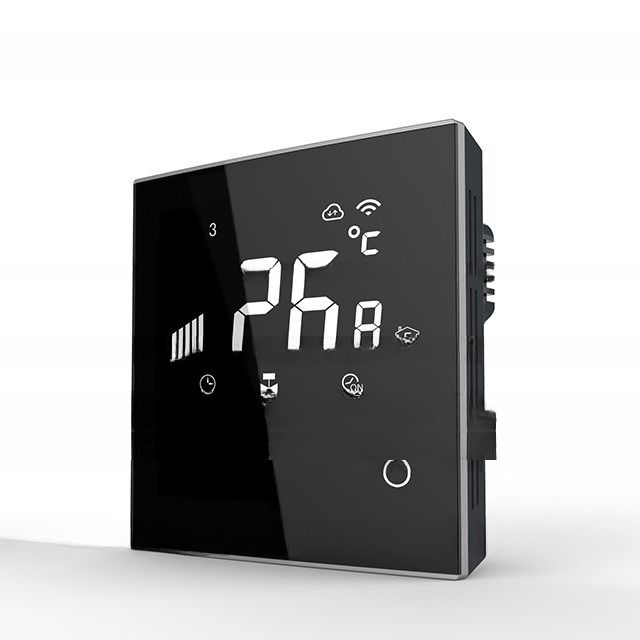

The AC301 series room thermostats are designed for intelligently controlling fan coils unites (FCU), motorized valve, motorized damper valves, dampers or heating equipment in industrial, commercial and residential environment. With large-screen acrylic LCD display measuring the ambient temperature by built- in NTC sensor and comparing it with set-point, AC301 Series Digital Room Thermostats could automatically adjust the air inflow volume of cooling/heating, or switch on/off motorized valves to keep a constant ambient temperature. Recommended match with V2016, V4016, V6016, and V8016 Series motorized valves.
| Load Current: | 1A(Inductive Current) 2A(Resistive Current) | Dimensin: | 86mm*86mm*15mm |
| Power Supply: | AC100~240V 50/60HZ | Temperature Control Accuracy: | <1.5W |
| Temperature Range: | 5°C~35°C | Sensing Components: | NTC |
Display
Wiring
