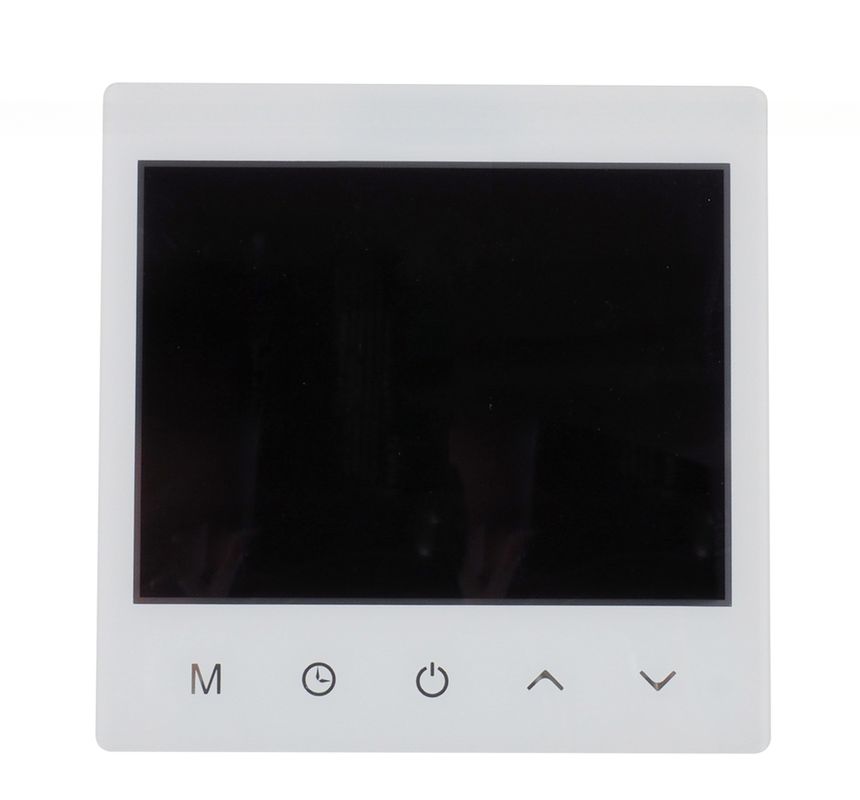

Intelligent 24VAC/110VAC/220VAC Power Supply WIFI Thermostat with Modbus Communication
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | elsonic |
| Model Number: | R3386 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 200 pieces |
|---|---|
| Price: | $15.00 - $20.00/pieces |
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 100000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Onsite Training, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Graphic Design, 3D Model Design, Others | Application: | Living Room, Boiler/ Radiator/ Electrical Heating |
| Design Style: | Modern | Industry: | HVAC Systems,Thermostat |
| Power Supply: | 24VAC/110VAC/220VAC | Max Load: | GA: 3A, GB: 16A |
| Display Accuracy: | 0.5℃ | Temperature Range: | 5~35℃ |
| LCD Screen: | Negative Black | Ambiente: | Storage:-20C~60C, Ambient Operating: 0°C To 50°C, Humidity:5~95% |
| Communication: | WIFI / RS485 / Modbus /knx | Keyword: | Tuya Wifi |
| Port: | Xiamen | ||
Product Description
General
The R3386 touch screen Thermostats are designed for intelligently control fireplace, boiler, electric motorized valve, heating systems in industrial, commercial and residential environment.
It adopts the latest capacitance touch pad technology, easy to operate. Black color makes it more dignity, elegant and mystery, which reveals the natural feature. 6 events per day could be programming by yourself.
The unique two-ways controlling on temperature feature extends the thermostat’s lifetime, and makes the whole system more reliable, efficient, and security.
Characteristics

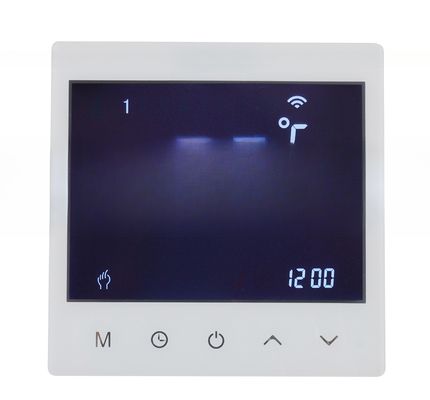

| - Big LCD Mirror touch screen. |
| - Setting Turn on/off within 24 hours. |
| - Compatiable with Tuya WiFi, Amazon Alexa and Google Assistance |
| - Attractive modern styling and smart out-looking(12mm only for surface board) |
| - May connect to main system |
| - Manual operation available |
| - Data Memory |
Technical data:
| Sensor | NTC |
| Power supply | 220VAC 50/60HZ |
| Rated Current | < 3A |
| Set-point Range | 5ºC - 35ºC |
| Control Accuracy | ±1ºC |
| Measured Temperature | 140 |
| Power Consumption | ≤1.5 W |
| Shell | White PC plastic |
| Relative Humidity | <92%(no condensing) |
| Ambient Condition | -5-55 ºC |
Application
