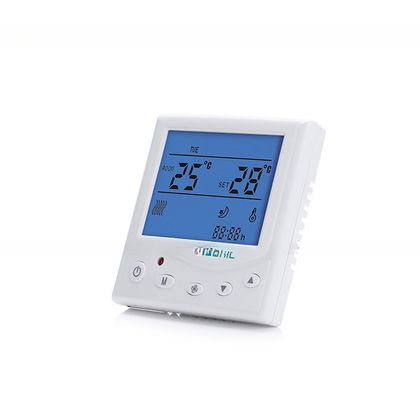

3A/16A Weekly Programmable Room Thermostat for Air Conditioning and Radiator System
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | Elsonic |
| Model Number: | R8200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50 pieces |
|---|---|
| Price: | $10.00 - $20.00/pieces |
| Packaging Details: | Floor Heating Thermostats1 UNIT/BOX SIZE: 11.5*10*7CM 84 UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
| Supply Ability: | 500000 Piece/Pieces per Month Unit |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Onsite Training, Onsite Inspection, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | 3D Model Design | Type: | Floor Heating Thermostats |
| Application: | Water Heating/Electric Heating System/Boiler | Power Supply: | 24VAC/110VAC/220VAC |
| Display Accuracy: | 0.5℃ | Temperature Range: | 5~35℃ |
| Programmable: | 5+2 Four Periods | Sensor: | Internal Or External |
| Communication: | WIFI / RS485 / Modbus / Zigbee | Installation Box: | 86*86mm |
| Current Load: | 3A/16A | Port: | Xiamen |
Product Description
Floor Heating Thermostat with RS485 Communication
General
R8200 Series LCD Heating Thermostat adopt NTC sensor, Output relay controls the on/off of the motorized valve. When room temperature is 1 lower than set-point, thermostat opens the valve; when they are equal, it closed the valve. The max. current load is 16A. With computerized controller technique. R8500 Series Thermostats have Timing Open/Close and 7days 4 cycle programmable function. LCD displays room temperature and set-point mode.
Specification
Sensor | NTC |
Temperature Control Accuracy | ±0.5ºC |
Set-point Range | 5-35°C |
Power Supply | AC220V ± 15%, 50/60 HZ |
Output Power | AC220V2A for water heating, AC220V16A for electric heating |
Shell | PC+ABS (Fire-proof) |
CHARACTERISTICS
- Nice design |
- Easy operation |
- NTC Sensor, accurate Temperature Measurement |
- LCD indicator |
