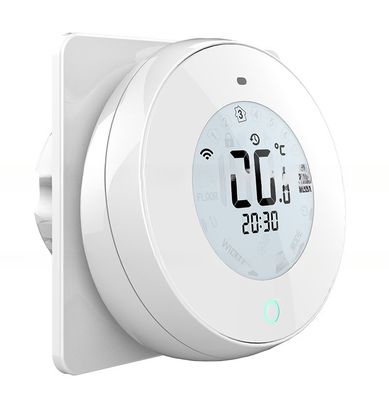

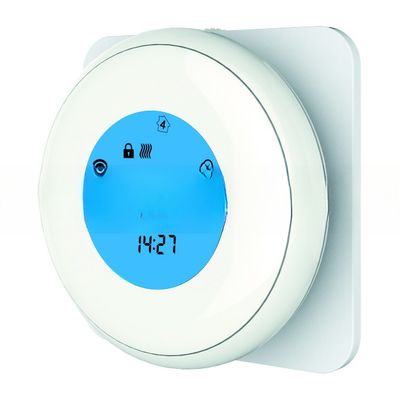

Round 0-10V Modulating Fan-coil Thermostat with Smart Touch Screen and Modbus RS485 RTU
Product Details:
| Place of Origin: | Fujian, China |
| Brand Name: | ELSONIC |
| Model Number: | AN004 |
Payment & Shipping Terms:
| Price: | $35.00/pieces 1-49 pieces |
|---|---|
| Packaging Details: | Thermostats1 UNIT/BOX SIZE: 11.8*11.8*8.5CM 20UNIT/CARTON SIZE: 58*44*42CM |
| Payment Terms: | T/T, L/C, D/P D/A, MoneyGram, Credit Card, PayPal, Western Union, Cash, Escrow |
|
Detail Information |
|||
| Warranty: | 1 Year | After-sale Service: | Online Technical Support, Free Spare Parts |
|---|---|---|---|
| Project Solution Capability: | Others | Type: | HVAC Systems,Thermostat |
| Application: | FCU/Central Air Conditioning | Shape: | Round |
| Feature: | 7-Day Programming | Power Supply: | 24VAC/110VAC/220VAC |
| Display Accuracy: | 0.5℃ | Temperature Range: | 5~35℃ |
| Suitable System: | Two Pipe/Four Pipe | Communication: | WIFI / RS485 / Modbus / Zigbee |
| Ambiente: | Storage:-20C~60C, Ambient Operating: 0°C To 50°C, Humidity:5~95% | ||
Product Description
WIFI thermostat remote control thermostat heating and cooling room thermostat
General
AN004 is an Internet WIFI Thermostat which allows user to control room temperature locally or remotely via Mobile App. By comparing between measured temperature (by internal temperature sensor) and preset desired temperature, it realizes the auto control of motorized valves and fan motor to keep a constant room temperature. It applies to the control of 2-pipes and 4-pipes Fan Coil Unit.
Specifications
- Load Current: 1A(Inductive Current) 2A(Resistive Current)
- Dimension: 86mm*86mm*15mm(H*W*T)
- Power Supply: AC100~240V 56/60HZ
- Temperature Control Accuracy: ±1°C
- Self-power consumption: <1.5W
- Temperature Range:10°C~30°C
- Sensing Components: NTC
- Time Error: <1%
Features
- LCD display, white backlight
- Display by digital, generic icon, chinese and english language
- display room temperature, display accurancy is 0.5°C
- Temperature adjustable, adjustment range is 0.5°C
- display time and weekday
- Human intelligent induction, it can save energy intelligently when there is nobody indoor.
- Refrigeration, heating advanced constant temperature.
- Remote mobile App control
Structure
Display
Installation Instruction
Wiring
